Featured Image for P56W-HK

A German-made reciprocating triplex plunger pump for high temperature applications.

Features:
Aluminum crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; high temperature nitrile seals (with fabric reinforcing); stainless steel valves and forged brass manifold.

WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification US Metric
Flow6.1 GPM23.1 L/min
Maximum Discharge Pressure1900 PSI130 bar
Crankshaft Speed1420 RPM
Power7.9 HP5.9 KW
Max Temperature195 °F90 °C
Inlet Port Size(2) 1/2" NPT
Discharge Port Size(2) 3/8" NPT
Plunger Diameter0.79 in.20 mm
Stroke0.71 in.18.1 mm
Crankshaft Diameter24 mm
Crankshaft RotationTop of Pulley Towards Manifold
Crankshaft MountingEither Side
Crankcase Oil Capacity US12.5 fl. oz. 0.37 L
Weight17.2 lbs.7.8 kg
Manifold Material Special Brass
Crankcase Material Aluminum
Plunger Material Solid Ceramic Oxide
Valve Material High Grade Stainless Steel
Seal Material Nitrile with Fabric Reinforcing
The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.
ITEM# PART# DESCRIPTION Qty.
Plunger Packing Kit – Part #09815
31 06076 V-Sleeve 3
31A 06537 High Temperature Seal 3
40 07212 O-Ring, Adapter 3
42 07214 O-Ring, Inlet Plug 3
44 07035 O-Ring, Discharge Plug 3
49 07218 O-Ring 1
50 08358 Grooved Seal Ring 3
51 06240 Support Ring 3
Valve Assembly Kit – Part #09458
34 05593 Spring Disc, SS 6
35 06017-0100 Valve Spring, SS 6
36 06016 Valve Plate 6
37 06014 Valve Seat 6
38 06015 O-Ring, Valve Seat 6
Oil Seal Kit – Part #09202
26 07206 Crankcase Oil Seal 3

Horsepower Specifications

RPM GPM 500 PSI 1000 PSI 1500 PSI 1885 PSI
851 3.7 1.3 2.5 3.8 4.8
967 4.2 1.4 2.9 4.3 5.5
1084 4.7 1.6 3.2 4.8 6.1
1201 5.2 1.8 3.6 5.3 6.8
1317 5.7 2.0 3.9 5.9 7.4
1420 6.1 2.1 4.2 6.3 7.9
1750* 7.5 2.6 5.1

*Intermittent duty only!

Images Open in new Window/Tab

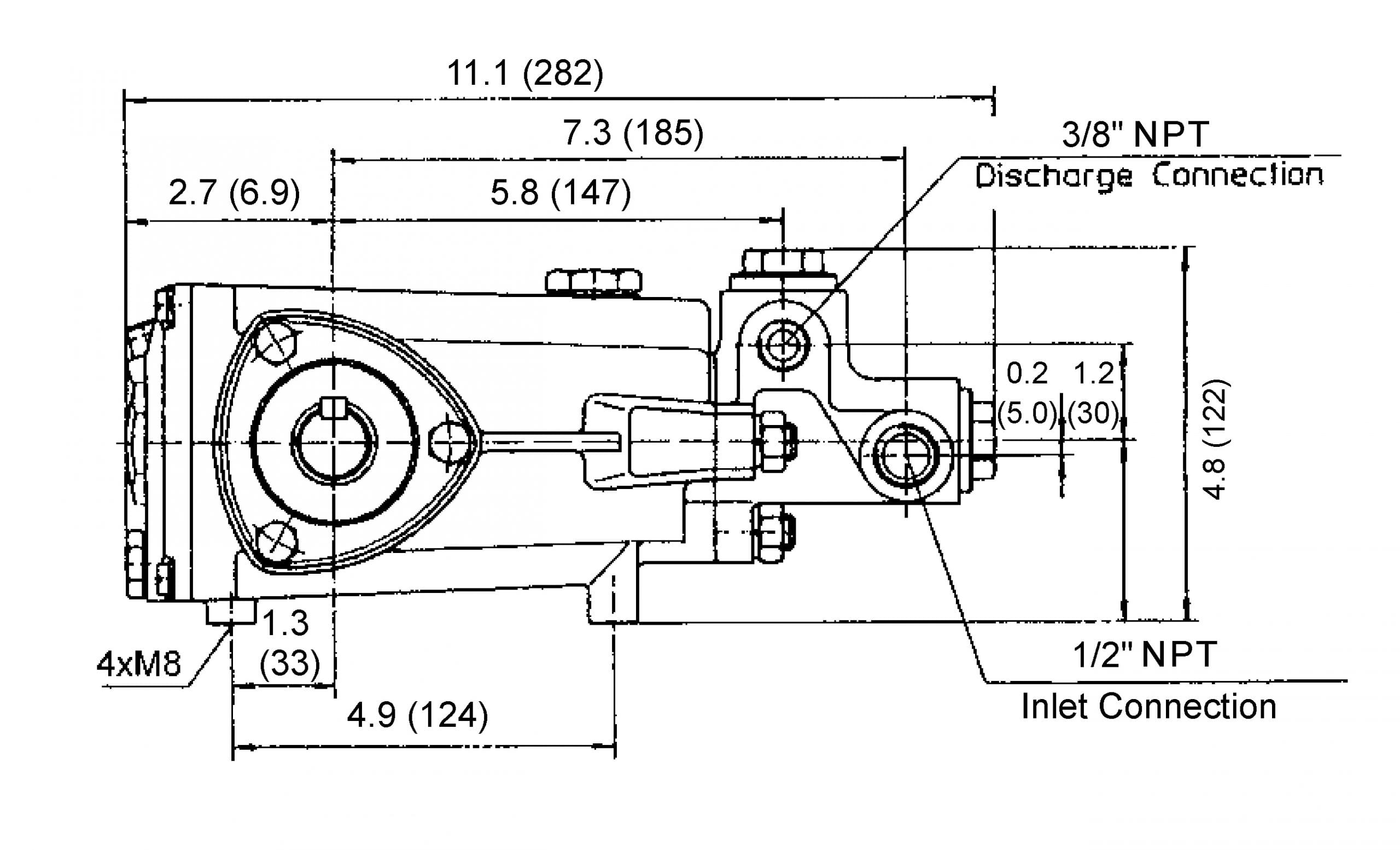

  • Dimensional Drawing (Side) Open

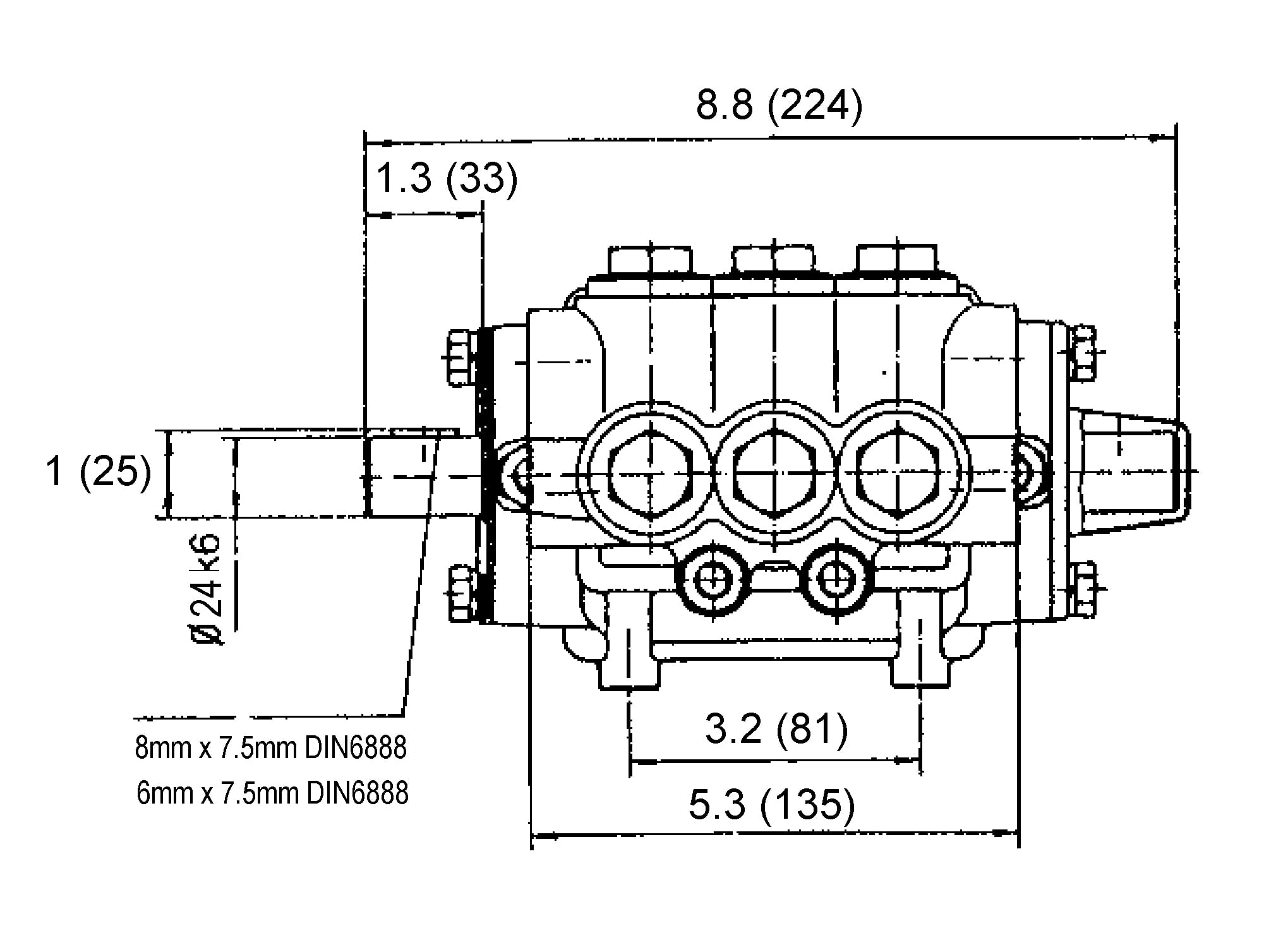

  • Dimensional Drawing (Front) Open

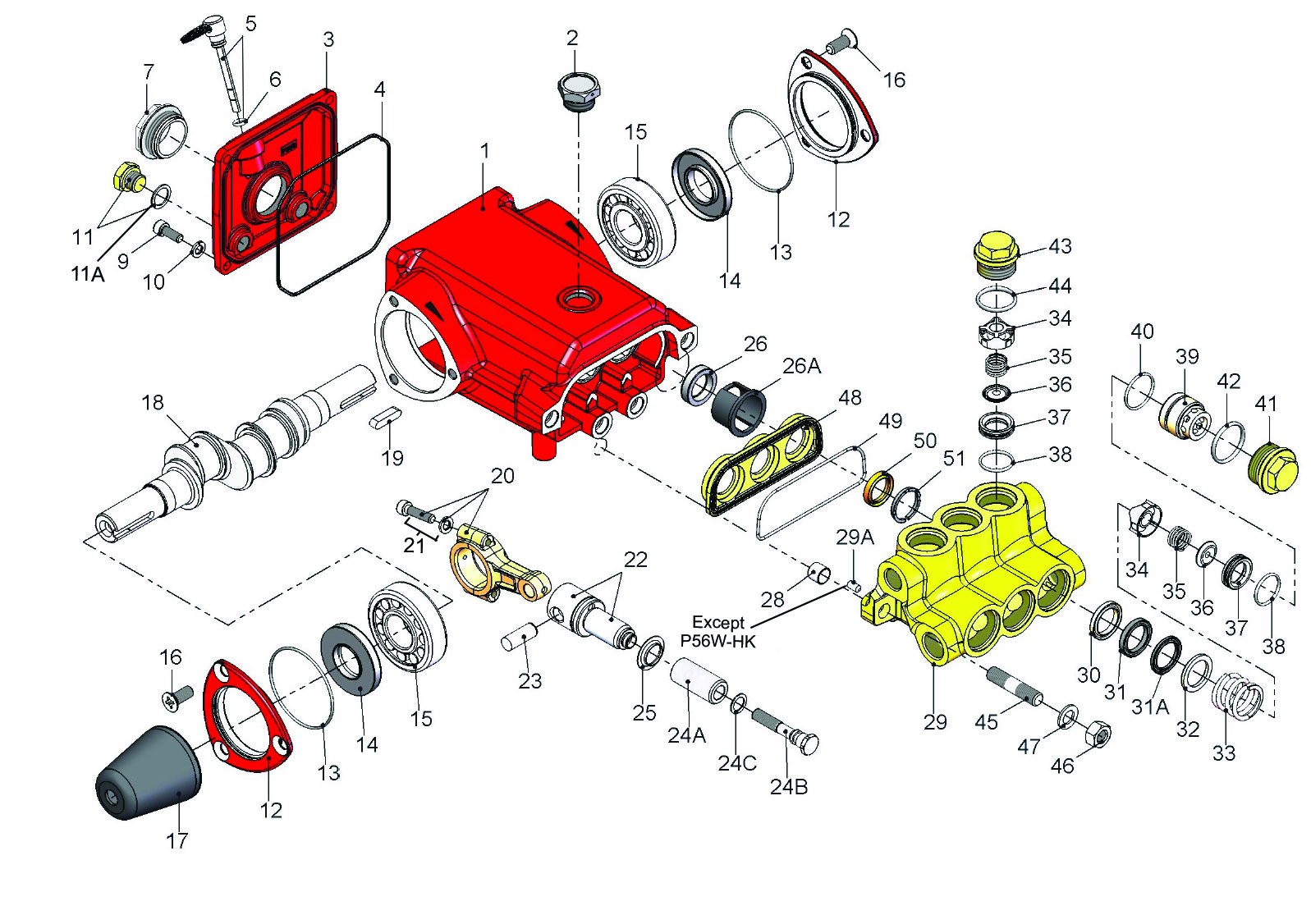

  • P56W-HK Exploded View
  • P56W-HK Parts List
  • P56W-HK Torque Specifications

Literature

Documents open in new window/tab.

  • Pump Assembly Instructions
  • Giant Industries Limited Warranty
  • P56W-HK Installation Instructions
  • P56W-HK Repair Instructions
  • Troubleshooting Guide
