P420A-0011
A German-made reciprocating triplex plunger pump.
Features:
Aluminum crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; Viton seals; Viton valves; and forged brass manifold.
Options:
Gearbox and bell housings (to connect to gasoline, diesel, electric or hydraulic drive) and pulsator valve.
WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
| Specification | US | Metric |
|---|---|---|
| Flow | 12.8 GPM | 48.4 L/min |
| Maximum Discharge Pressure | 2175 PSI | 150 bar |
| Crankshaft Speed | 1450 RPM | |
| Power | 19.2 HP | 14.3 KW |
| Max Temperature | 160 °F | 70 °C |
| Inlet Port Size | (2) 1" NPT | |
| Discharge Port Size | (2) 3/4" NPT | |
| Plunger Diameter | 0.98 in. | 25 mm |
| Stroke | 0.945 in. | 24 mm |
| Maximum Inlet Pressure | 145 PSI | 10 bar |
| Crankshaft Diameter | 1.1 in. | 28 mm |
| Crankshaft Rotation | Top of Pulley Towards Manifold | |
| Key Width | 0.315 in. | 8 mm |
| Crankshaft Mounting | Either Side | |
| Crankcase Oil Capacity US | 30.4 fl. oz. | 0.9 L |
| Weight | 38.3 lbs. | 17.4 kg |
| Volumetric Efficiency | 0.95 | |
| Mechanical Efficiency | 0.86 | |
| NPSHR | 30.5 Ft.-head | 9.3 mWs |

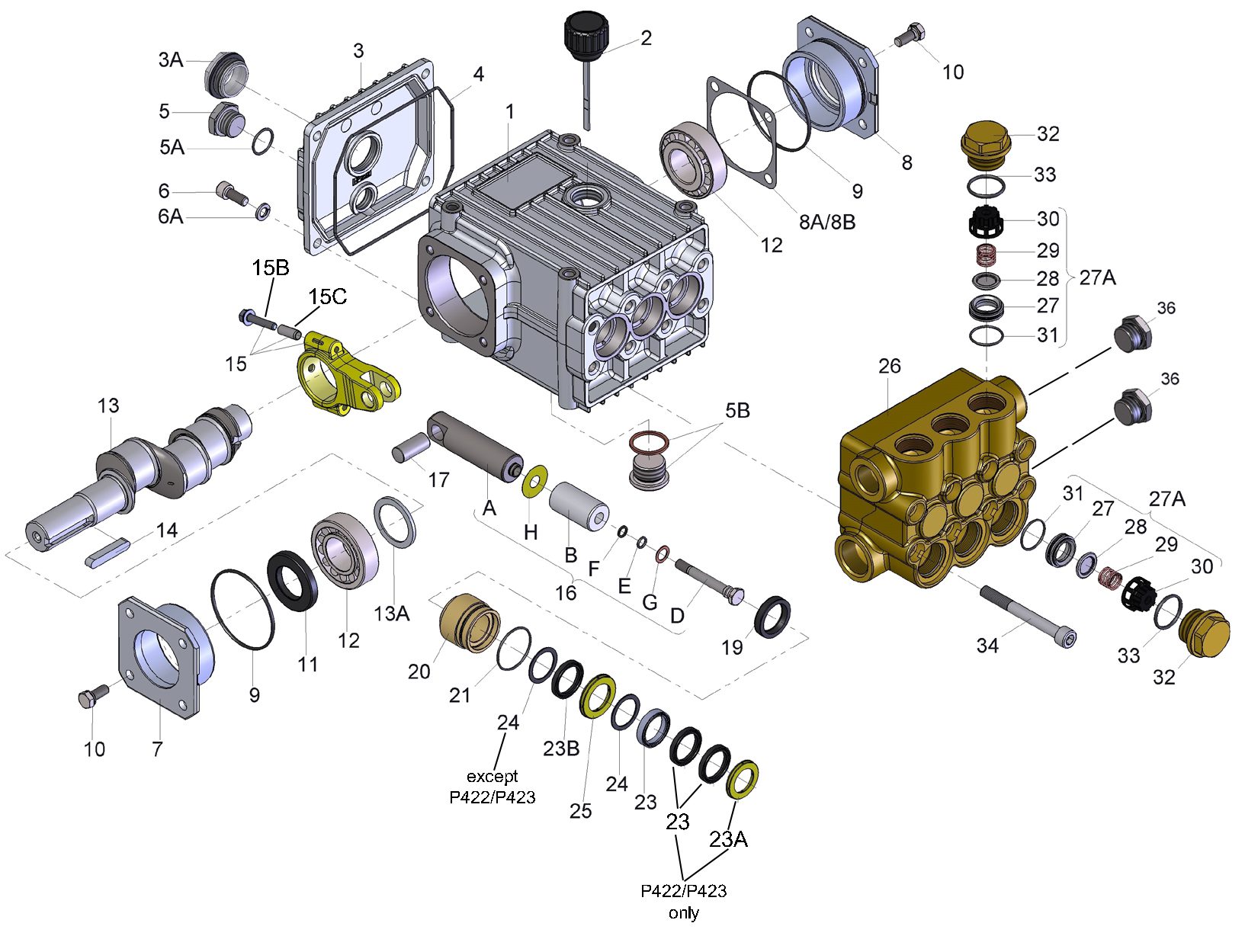

| ITEM# | PART# | DESCRIPTION | Qty. |
|---|---|---|---|
| Plunger Packing Kits – Part #09140-0011 | |||
| 21 | 07266-0001 | O-Ring, Viton | 3 |
| 23 | 12254-0010 | V-Sleeve, Viton | 3 |
| 23B | 12255-0010 | Weep Seal, Viton | 3 |
| 24 | 08376 | Pressure Ring | 6 |
| Valve Assembly Kit – Part #09143-0001 | |||
| 27A | 08408-0001 | Valve Assembly, Complete | 6 |
| 33 | 07214-0001 | O-Ring | 6 |
| Oil Seal Kit – Part #09641 | |||
| 19 | 05444 | Oil Seal | 3 |
Horsepower Specifications
| RPM | GPM | 1000 PSI | 1500 PSI | 1700 PSI | 2175 PSI |
|---|---|---|---|---|---|
| 785 | 6.9 | 4.8 | 7.1 | 8.1 | 10.4 |
| 900 | 7.9 | 5.4 | 8.2 | 9.3 | 11.9 |
| 1010 | 8.9 | 6.1 | 9.2 | 10.4 | 13.4 |
| 1120 | 9.9 | 6.8 | 10.2 | 11.6 | 14.9 |
| 1240 | 10.9 | 7.5 | 11.3 | 12.8 | 16.4 |
| 1450 | 12.8 | 8.8 | 13.2 | 15.0 | 19.2 |
