Featured Image for P230

An American-made triplex plunger positive displacement pump with reciprocating plungers for direct or belt drive applications.

Features:
Aluminum crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; nitrile seals (with fabric reinforcing); stainless steel valves and forged brass manifold.

Options:
Gearbox and bell housings (to connect to gasoline, diesel, electric or hydraulic drive), couplers (aluminum or Delrin), unloader/regulator, fixed or adjustable chemical injector, thermal relief valve and pulsator valve.

WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification US Metric
Flow1.1 GPM4.2 L/min
Maximum Discharge Pressure2000 PSI140 bar
Crankshaft Speed1750 RPM
Power1.5 HP1.1 KW
Flow (High Speed)2.1 GPM7.6 L/min
Maximum Discharge Pressure (High Speed)2000 PSI140 bar
Power Consumption (High Speed)2.8 HP2.1 KW
Crankshaft Speed (High)3450 RPM
Intermittent Flow1.1 GPM4.2 L/min
Intermittent Discharge Pressure2500 PSI170 bar
Intermittent Crankshaft Speed1750 RPM
Intermittent Power Consumption1.9 HP1.4 kW
Max Temperature160 °F70 °C
Inlet Port Size(2) 1/2" BSP
Discharge Port Size(2) 3/8" BSP
Plunger Diameter0.71 in.18 mm
Stroke0.13 in.3.4 mm
Maximum Inlet Pressure145 PSI10 bar
Crankshaft Diameter0.98 in.24 mm
Crankshaft RotationTop of Pulley Towards Manifold
Key Width0.31 in.8 mm
Crankshaft MountingEither Side
Crankcase Oil Capacity US7.5 fl. oz. 0.22 L
Extended Crankcase Oil Capacity9.0 fl. oz. 0.27 L
Weight11.7 lbs.5.3 kg
Manifold Material Special Brass
Crankcase Material Aluminum
Plunger Material Solid Ceramic Oxide
Valve Material High Grade Stainless Steel
Seal Material Nitrile with Fabric Reinforcing
The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.
ITEM# PART# DESCRIPTION Qty.
Plunger Packing Kit – Part #09164
23 08477 V-Sleeve, Weep 3
23A 08087 V-Sleeve, Brown 3
24 07904 Pressure Ring 3
Valve Assembly Kit – Part #09116
32X 07946A Valve Assembly Complete 6
31 07853 O-Ring 6
33 07913 O-Ring 6
Oil Seal Kit – Part #09144
19 08356 Oil Seal 3
Optional Teflon Packing Kit – Part #09164-0021
18 07770-0001 O-Ring, Viton 3
21 08443-0001 O-Ring, Viton 3
23/23A 08087-0020 Weep Seal, Teflon 6
24 07904 Pressure Ring 3
31 07853-0001 O-Ring, Viton 6
33 07913-0001 O-Ring Viton 6
Viton Seal Kit – Part #09164-0011
18 07770-0001 O-Ring, Viton 3
21 08443-0001 O-Ring, Viton 3
23 08087-0010 V-Sleeve 6
24 07904 Pressure Ring 3
31 07853-0001 O-Ring, Viton 6
33 07913-0001 O-Ring, Viton 6
High Temperature Seal Kit – Part #09599
23/23A 08477-0030 High-Temp Seal 6
24 07904 Pressure Ring 6+
+ Kit contains six (6) pressure rings. Only three (3)
are required for the P200 Series Pumps.

Horsepower Specifications

RPM GPM 1000 PSI 1500 PSI 2000 PSI 2500 PSI*
250 0.2 0.1 0.2 0.2 0.3
500 0.3 0.2 0.3 0.4 0.5
1000 0.6 0.4 0.7 0.9 1.1
1450 0.9 0.6 0.9 1.3 1.6
1750 1.1 0.8 1.1 1.5 1.9
3000 1.8 1.2 1.8 2.5 3.1
3200 1.9 1.3 2.0 2.6 3.3
3450 2.0 1.4 2.1 2.8 3.5

*Intermittent duty only!

Images Open in new Window/Tab

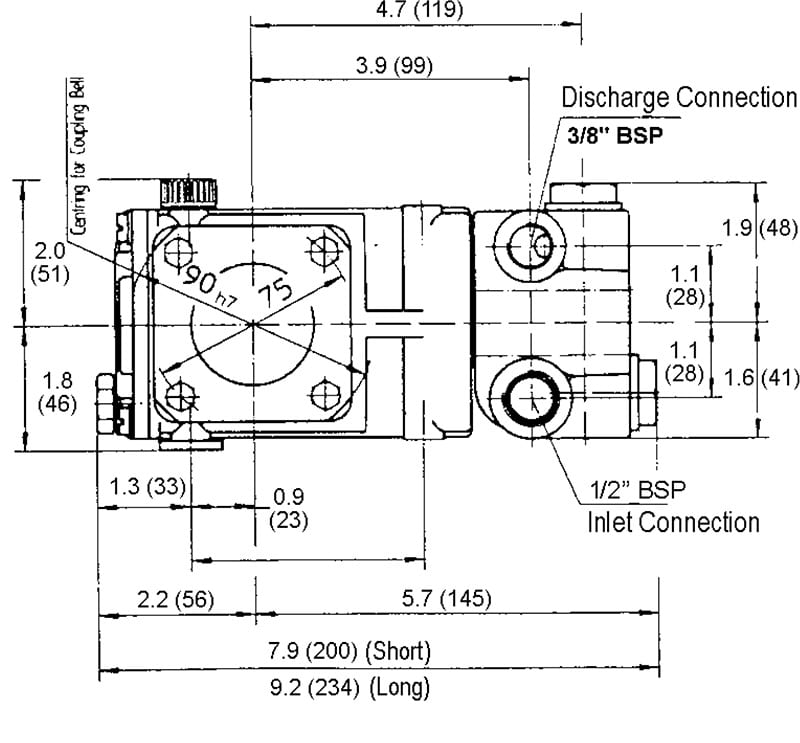

  • Dimensional Drawing (Side) Open

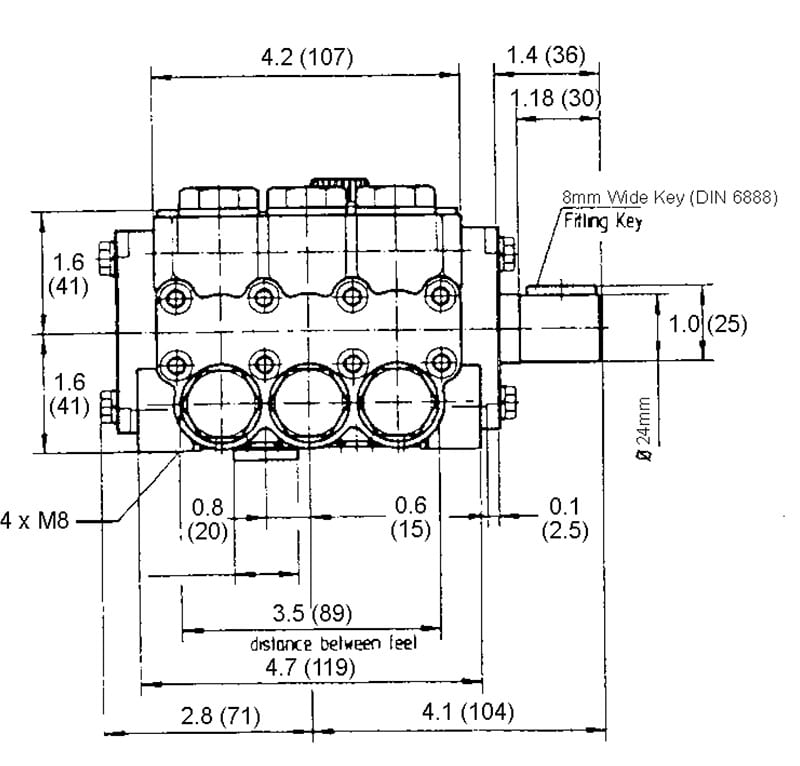

  • Dimensional Drawing (Front) Open
  • P230 Exploded View
  • P230 Parts List
  • P230 Torque Specifications

Literature

Documents open in new window/tab.

  • Pump Assembly Instructions
  • Giant Industries Limited Warranty
  • P230 Installation Instructions
  • P230 Repair Instructions
  • Troubleshooting Guide
