P218
An American-made triplex plunger positive displacement pump with reciprocating plungers for direct or belt drive applications.
Features:
Aluminum crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; nitrile seals (with fabric reinforcing); stainless steel valves and forged brass manifold.
Options:
Gearbox and bell housings (to connect to gasoline, diesel, electric or hydraulic drive), couplers (aluminum or Delrin), unloader/regulator, fixed or adjustable chemical injector, thermal relief valve and pulsator valve.
WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
| Specification | US | Metric |
|---|---|---|
| Flow | 3.4 GPM | 12.9 L/min |
| Maximum Discharge Pressure | 2000 PSI | 140 bar |
| Crankshaft Speed | 1750 RPM | |
| Power | 4.7 HP | 3.5 KW |
| Intermittent Flow | 3.4 GPM | 12.9 L/min |
| Intermittent Discharge Pressure | 2500 PSI | 170 bar |
| Intermittent Crankshaft Speed | 1750 RPM | |
| Intermittent Power Consumption | 5.9 HP | 4.4 kW |
| Max Temperature | 160 °F | 70 °C |
| Inlet Port Size | (2) 1/2" BSP | |
| Discharge Port Size | (2) 3/8" BSP | |
| Plunger Diameter | 0.71 in. | 18 mm |
| Stroke | 0.39 in. | 10 mm |
| Maximum Inlet Pressure | 145 PSI | 10 bar |
| Crankshaft Diameter | 0.98 in. | 24 mm |
| Crankshaft Rotation | Top of Pulley Towards Manifold | |
| Key Width | 0.31 in. | 8 mm |
| Crankshaft Mounting | Either Side | |
| Crankcase Oil Capacity US | 7.5 fl. oz. | 0.22 L |
| Extended Crankcase Oil Capacity | 9.0 fl. oz. | 0.27 L |
| Weight | 11.7 lbs. | 5.3 kg |
| Volumetric Efficiency | 0.87 | |
| Mechanical Efficiency | 0.86 | |
| Manifold Material | Special Brass | |
| Crankcase Material | Aluminum | |
| Plunger Material | Solid Ceramic Oxide | |
| Valve Material | High Grade Stainless Steel | |
| Seal Material | Nitrile with Fabric Reinforcing |

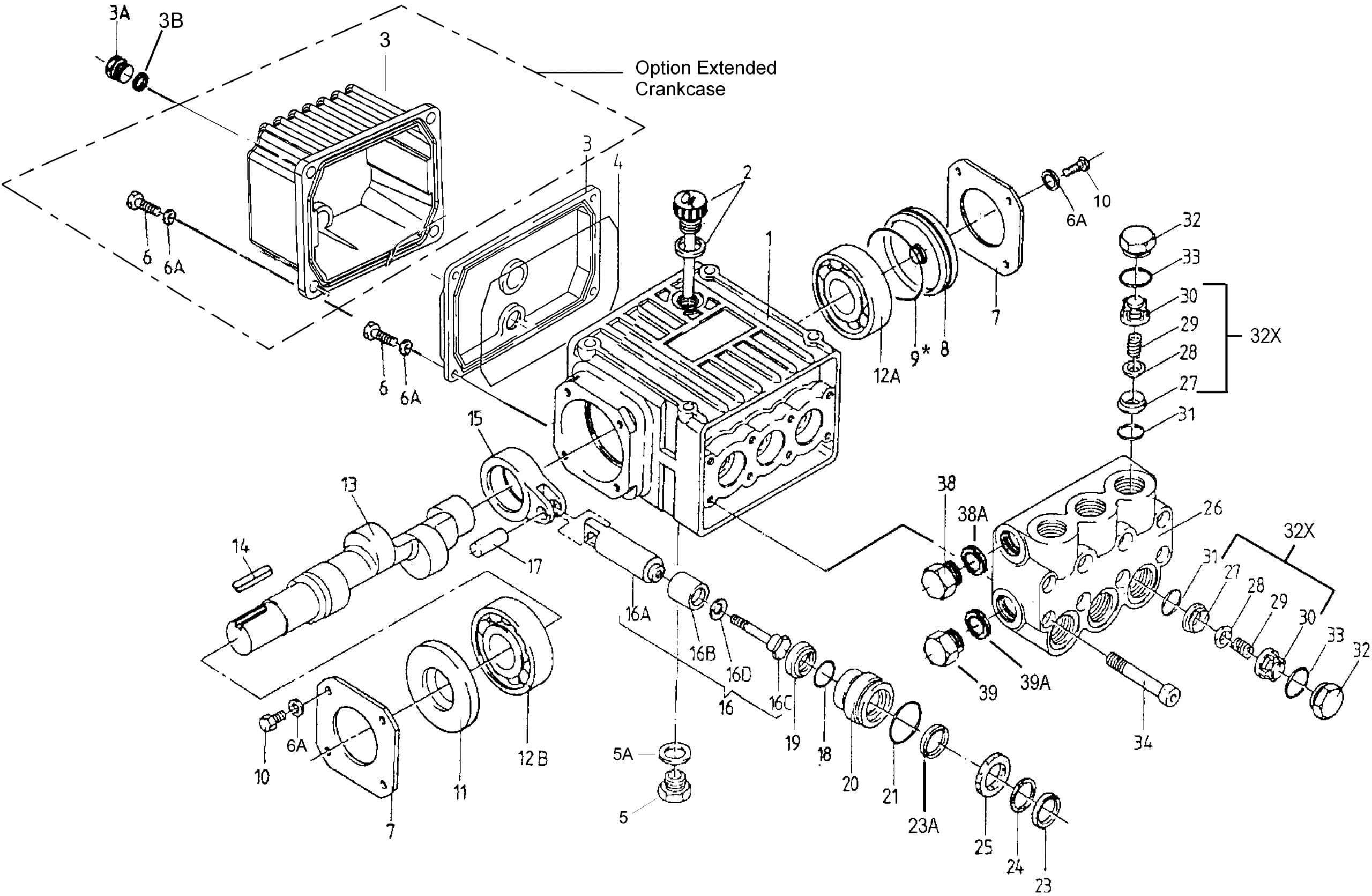

| ITEM# | PART# | DESCRIPTION | Qty. |
|---|---|---|---|
| Plunger Packing Kit – Part #09164 | |||
| 23 | 08477 | V-Sleeve, Weep | 3 |
| 23A | 08087 | V-Sleeve, Brown | 3 |
| 24 | 07904 | Pressure Ring | 3 |
| Valve Assembly Kit – Part #09116 | |||
| 32X | 07946A | Valve Assembly Complete | 6 |
| 31 | 07853 | O-Ring | 6 |
| 33 | 07913 | O-Ring | 6 |
| Oil Seal Kit – Part #09144 | |||
| 19 | 08356 | Oil Seal | 3 |
| Optional Teflon Packing Kit – Part #09164-0021 | |||
| 18 | 07770-0001 | O-Ring, Viton | 3 |
| 21 | 08443-0001 | O-Ring, Viton | 3 |
| 23/23A | 08087-0020 | Weep Seal, Teflon | 6 |
| 24 | 07904 | Pressure Ring | 3 |
| 31 | 07853-0001 | O-Ring, Viton | 6 |
| 33 | 07913-0001 | O-Ring Viton | 6 |
| Viton Seal Kit – Part #09164-0011 | |||
| 18 | 07770-0001 | O-Ring, Viton | 3 |
| 21 | 08443-0001 | O-Ring, Viton | 3 |
| 23 | 08087-0010 | V-Sleeve | 6 |
| 24 | 07904 | Pressure Ring | 3 |
| 31 | 07853-0001 | O-Ring, Viton | 6 |
| 33 | 07913-0001 | O-Ring, Viton | 6 |
| High Temperature Seal Kit – Part #09599 | |||
| 23/23A | 08477-0030 | High-Temp Seal | 6 |
| 24 | 07904 | Pressure Ring | 6+ |
| + Kit contains six (6) pressure rings. Only three (3) are required for the P200 Series Pumps. |
|||
Horsepower Specifications
| RPM | GPM | 1000 PSI | 1500 PSI | 2000 PSI | 2500 PSI* |
|---|---|---|---|---|---|
| 250 | 0.5 | 0.3 | 0.5 | 0.7 | 0.8 |
| 500 | 1.0 | 0.7 | 1.0 | 1.3 | 1.7 |
| 1000 | 1.9 | 1.3 | 2.0 | 2.7 | 3.4 |
| 1450 | 2.8 | 1.9 | 2.9 | 3.9 | 4.9 |
| 1750 | 3.4 | 2.3 | 3.5 | 4.7 | 5.9 |
*Intermittent duty only!
