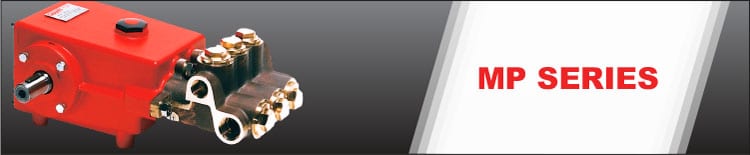

Featured Image for MP4124-SWS

A German-made reciprocating triplex plunger pump.

Features:
Spheroidal cast iron crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; nitrile seals (with fabric reinforcing); stainless steel valves and cast bronze manifold.

WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification US Metric
Flow12.8 GPM48.6 L/min
Maximum Discharge Pressure2610 PSI180 bar
Crankshaft Speed1450 RPM
Power24.0 HP17.9 KW
Max Temperature160 °F70 °C
Inlet Port Size(2) 1" NPT
Discharge Port Size(2) 3/4" NPT
Plunger Diameter0.95 in.24 mm
Stroke1.02 in.26 mm
Maximum Inlet Pressure145 PSI10 bar
Crankshaft Diameter1.1 in.28 mm
Crankshaft RotationTop of Pulley Towards Manifold
Crankshaft MountingEither Side
Crankcase Oil Capacity US33.8 fl. oz. 1.0 L
Weight66 lbs.31 kg
NPSHR8.5 mWs
Manifold Material Aluminum Bronze
Crankcase Material Spheroidal Cast Iron
Plunger Material Solid Ceramic Oxide
Valve Material High Grade Stainless Steel
Seal Material Nitrile with Fabric Reinforcing
The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.
ITEM# PART# DESCRIPTION Qty.
Plunger Packing Kit – Part #09731
35B 13050 Rear Support Ring 3
35C 13049 Rear V-Sleeve 3
35D 07266 Rear O-Ring 3
40 06083 V-Sleeve 3
Inlet Valve Assembly Kit – Part #09062
42B 07332 O-Ring Tension Plug 3
44 07280 Valve Seat 3
44A 07281 O-Ring, Valve Seat 3
45 07282 Valve Plate 3
46A 06959 Valve Spring 3
53 12057 O-Ring 3
53A 12027 O-Ring 3
54 06115 Spring Retainer 3
Inlet Valve Assembly Kit – Part #09043
42B 07332 O-Ring Tension Plug 3
44 07280 Valve Seat 3
44A 07281 O-Ring 3
45 07282 Valve Plate 3
46 07283 Valve Spring 3
47 07284 Spring Retainer 3

Horsepower Specifications

RPM GPM 1500 PSI 2000 PSI 2500 PSI 3000 PSI
805 7.1 7.3 9.8 12.2 14.7
900 7.9 8.2 10.9 13.6 16.3
990 8.7 9.0 12.0 15.0 18.0
1085 9.6 9.9 13.2 16.6 19.9
1140 10.1 10.4 13.9 17.4 20.9
1305 11.5 11.9 15.9 19.8
1450 12.8 13.2 17.7 22.1

Images Open in new Window/Tab

  • Dimensional Drawing (Side) Open
  • Dimensional Drawing (Front) Open
  • MP4124-SWS Exploded View
  • MP4124-SWS Parts List

Literature

Documents open in new window/tab.

  • Pump Assembly Instructions
  • Giant Industries Limited Warranty
  • MP4124-SWS Installation Instructions
  • MP4124-SWS Repair Instructions
  • Troubleshooting Guide

Sample Pump
