Featured Image for LP600-5100

A German-made triplex plunger positive displacement pump with reciprocating plungers for belt drive applications.

Features:
Spheroidal cast iron crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; nitrile seals (with fabric reinforcing); stainless steel valves and 316 stainless steel manifold.

WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specification US Metric
Flow9.8 GPM37 L/min
Maximum Discharge Pressure5800 PSI400 bar
Crankshaft Speed1000 RPM
Power39.5 HP29.5 KW
Max Temperature140 °F60 °C
Inlet Port Size(2) 1-1/4" BSP
Discharge Port Size(2) 1" BSP
Plunger Diameter0.79 in.20 mm
Stroke1.65 in.42 mm
Maximum Inlet Pressure140 PSI9.7 bar
Crankshaft Diameter35 mm
Crankshaft RotationTop of Pulley Towards Manifold
Crankshaft MountingEither Side
Crankcase Oil Capacity US100 fl. oz. 3.0 L
Weight132 lbs.60 kg
Manifold Material Stainless Steel
Crankcase Material Spheroidal Cast Iron
Plunger Material Solid Ceramic Oxide
Valve Material High Grade Stainless Steel
Seal Material Nitrile with Fabric Reinforcing
The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.
ITEM# PART# DESCRIPTION Qty.
Plunger Packing Kit – Part #09197-0100
36 13237 Leakage Seal 3
38 07140 O-Ring 3
38A 13241 Support Ring 3
39 13012 O-Ring 3
39A 13036 Support Ring 3
40 07322 V-Sleeve 3
40A 07268-0100 Pressure Ring 3
40C 07322-0100 Sleeve 3
Valve Assembly Kit – Part #09195
44A 07150 O-Ring 9
44B 06266 Support Ring 3
46A 07064-0100 Valve Seat 6
46B 13130 Valve Plate 6
46C 07062-0100 Valve Spring 6
Valve Assembly Kit – Part #09721
44A 07150 O-Ring 9
44B 06266 Support Ring 3
46A 07064-0100 Valve Seat 6
46B 13130 Valve Plate 6
46C 07062-0100 Valve Spring 6
46D 05472 Spacer Pipe 6
46E 05473 Valve Spring Guide 6
Oil Seal Kit – Part #09577
31 07133 Oil Seal 3

Horsepower Specifications

RPM GPM 3000 PSI 4000 PSI 5000 PSI 5800 PSI
500 4.9 10.2 13.6 17.0 19.7
640 6.2 12.9 17.2 21.5 25.0
750 7.3 15.2 20.3 25.3 29.4
805 7.8 16.3 21.7 27.1 31.4
865 8.4 17.5 23.3 29.2 33.8
940 9.1 19.0 25.3 31.6 36.7
1000 9.8 20.4 27.2 34.0 39.5

Images Open in new Window/Tab

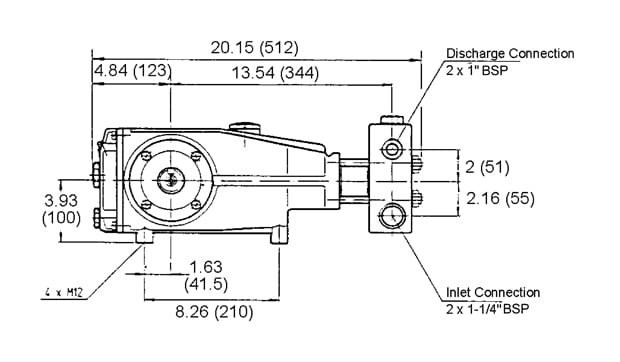

  • Dimensional Drawing (Side) Open

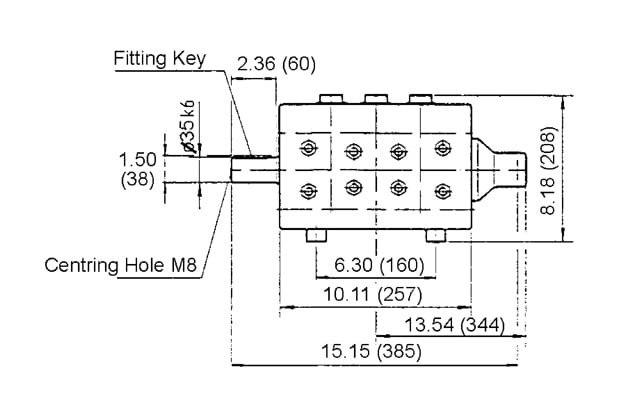

  • Dimensional Drawing (Front) Open

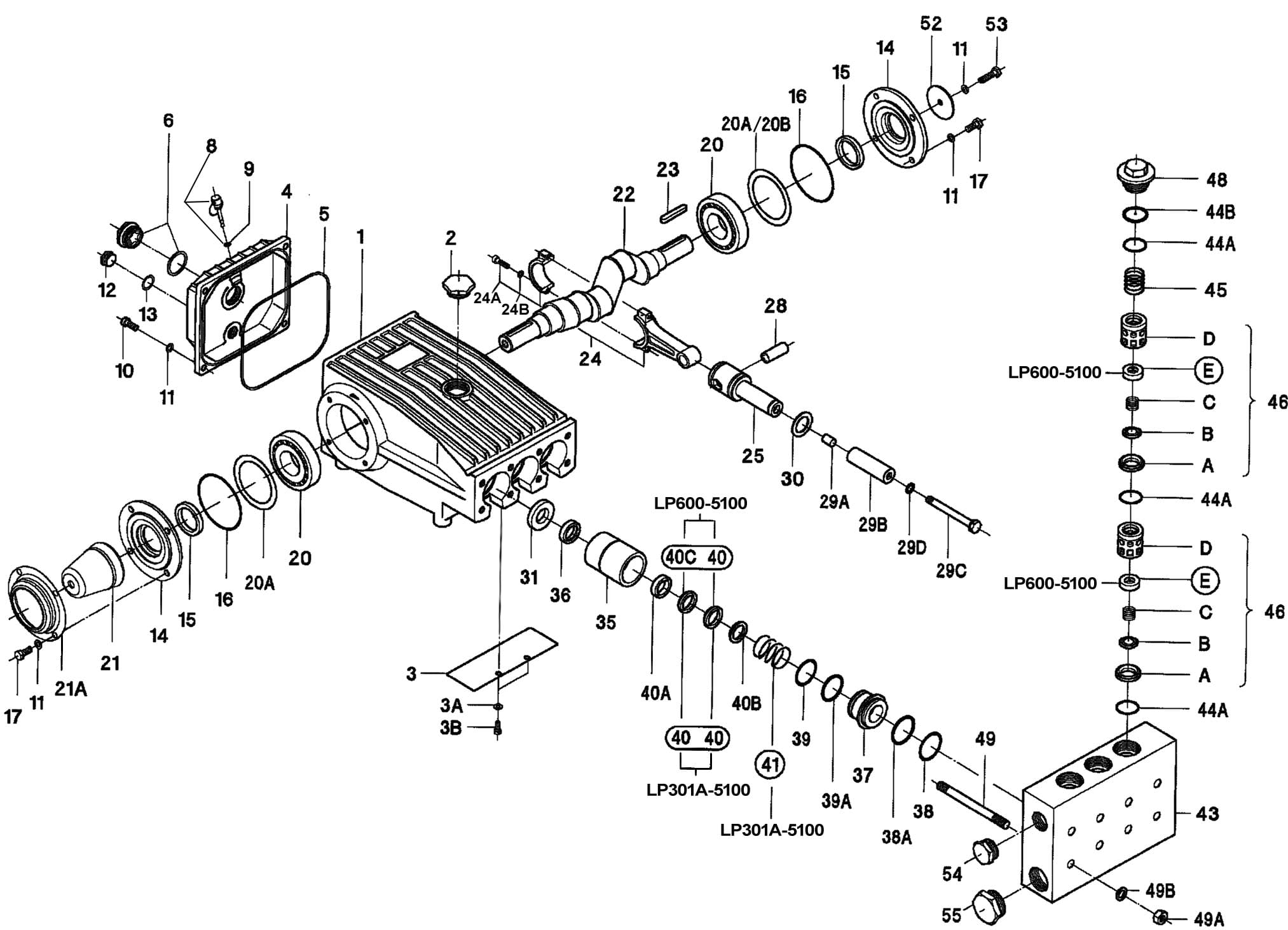

  • LP600-5100 Exploded View
