GP7645GBHS
A German-made reciprocating triplex plunger pump designed for hydraulic drive.
Features:
Spheroidal cast iron crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; nitrile seals with fabric reinforcing; duplex steel/plastic retainer valves and nickel-plated Spheroidal cast iron manifold. Comes equipped with an integrated oil cooling system and a gearbox.
WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
| Specification | US | Metric |
|---|---|---|
| Flow | 55.5 GPM | 210 L/min |
| Maximum Discharge Pressure | 3000 PSI | 200 bar |
| Crankshaft Speed | 800 RPM | |
| Power | 110 HP | 82.5 KW |
| Max Temperature | 86 °F | 30 °C |
| Inlet Port Size | (2) 2-1/2" NPT | |
| Discharge Port Size | (2) 1-1/4" NPT | |
| Plunger Diameter | 1.77 in. | 45 mm |
| Stroke | 2.28 in. | 58 mm |

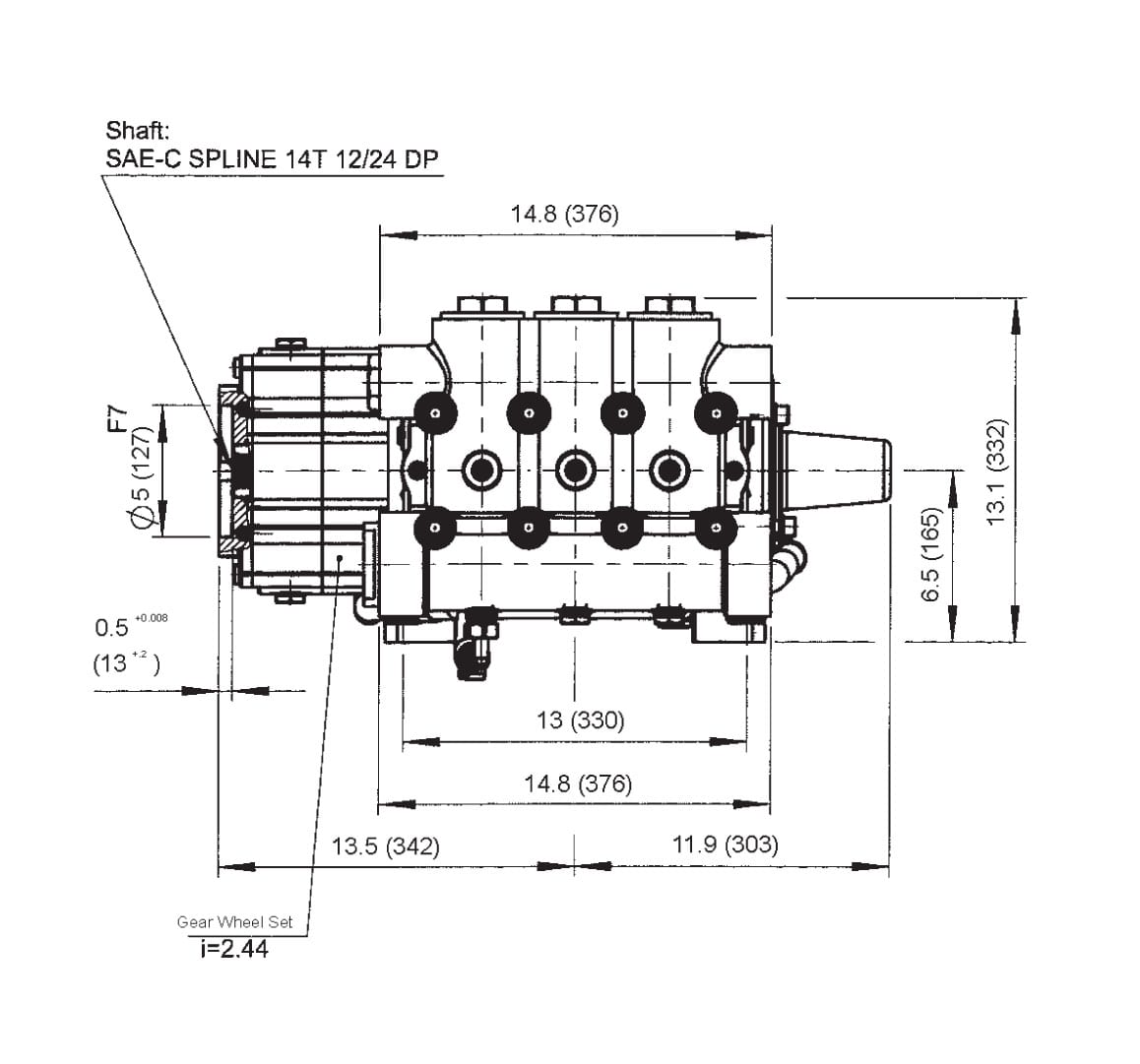

| Crankshaft Bore | SAE-C Spline 14T 12/24 DP | |
| Crankshaft Rotation | Hydraulic Gear Towards Back of Pump | |
| Crankshaft Mounting | Either Side | |
| Crankcase Oil Capacity US | see manual | see manual |
| Weight | 476 lbs. | 216 kg |
| NPSHR | 9.1 mWs | |
| Manifold Material | Nickel-Plated Spheroidal Cast Iron | |
| Crankcase Material | Spheroidal Cast Iron | |
| Plunger Material | Solid Ceramic Oxide | |
| Valve Material | Duplex Steel/Plastic Retainer | |
| Seal Material | Nitrile with Fabric Reinforcing |

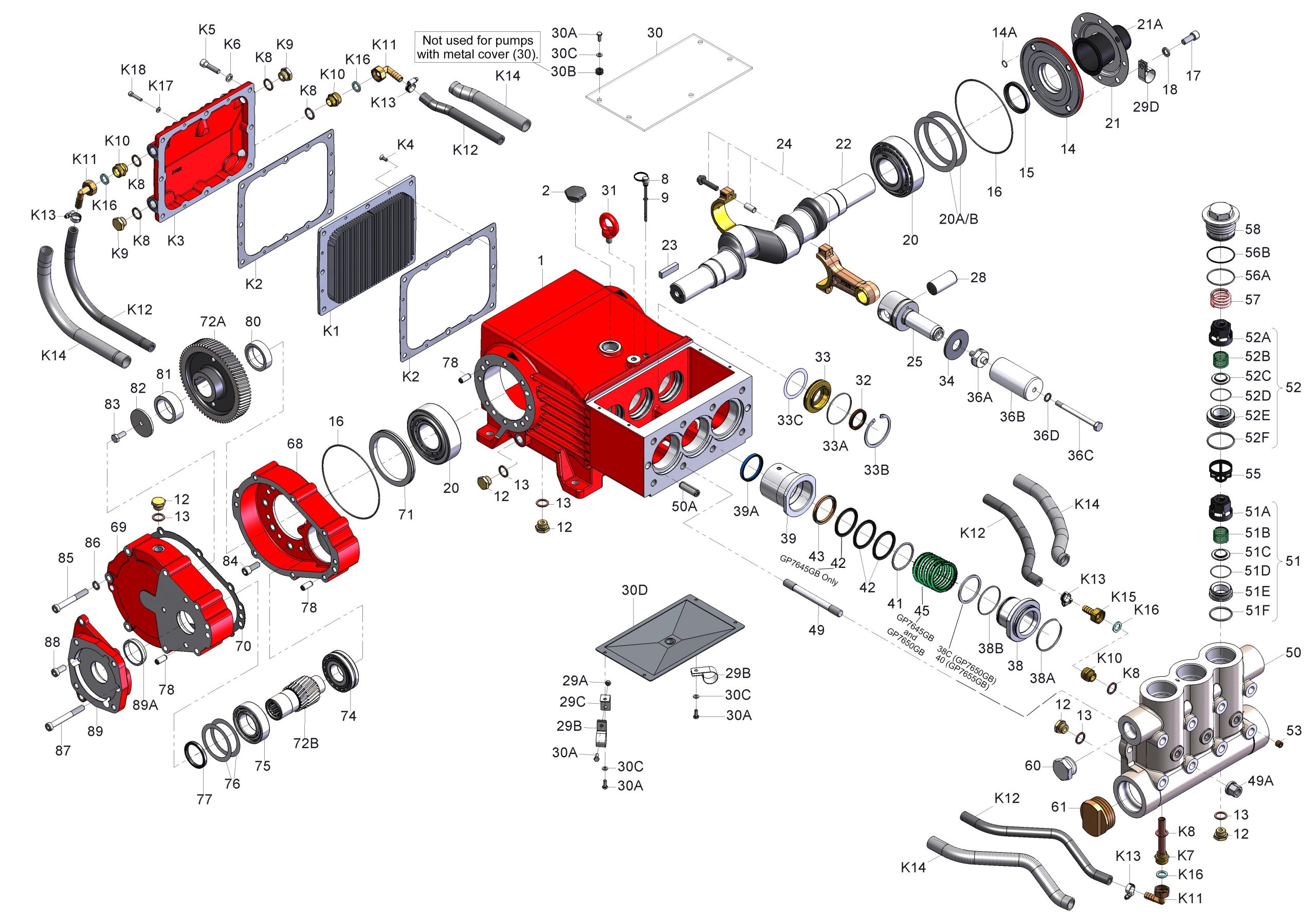

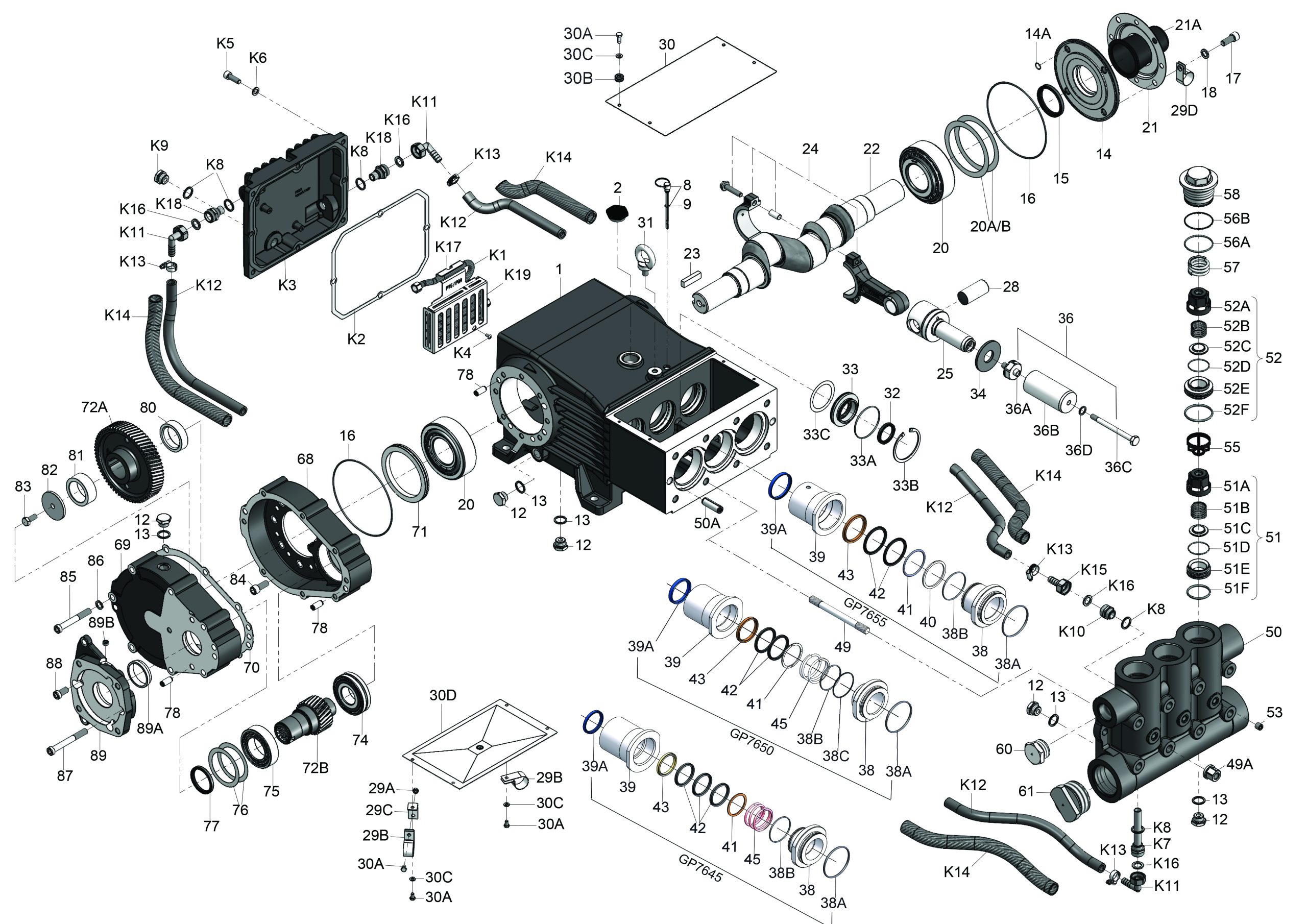

| ITEM# | PART# | DESCRIPTION | Qty. |
|---|---|---|---|
| Plunger Packing Kit – Part #09603 | |||
| 38A | 13156 | O-Ring | 3 |
| 38B | 06258 | O-Ring | 3 |
| 39A | 13290 | Grooved Ring | 3 |
| 42 | 13294 | V-Sleeve | 9 |
| Inlet Valve Kit – Part #09659 | |||
| 51 | 05594 | Inlet Valve Assembly | 1 |
| 56A | 07658 | O-Ring | 1 |
| 56B | 07635 | Support Ring | 1 |
| Large Discharge Valve Kit – Part #09660 | |||
| 52 | 05600 | Discharge Valve Assembly | 1 |
| 55 | 05647 | Valve Spacer | 1 |
| 56A | 07658 | O-Ring | 1 |
| 56B | 07635 | Support Ring | 1 |
| Small Discharge Valve Kit* – Part #09661 | |||
| 51B | 05450 | Valve Spring | 1 |
| 51C | 05247 | Valve Plate | 1 |
| 51D | 05596 | O-Ring | 1 |
| 52F | 05599 | O-Ring | 1 |
| 56A | 07658 | O-Ring | 1 |
| 56B | 07635 | Support Ring | 1 |
| Oil Seal Kit – Part #09221 | |||
| 32 | 07624 | Radial Shaft Seal | 3 |
| 33A | 07627 | O-Ring | 3 |
*The discharge valve seat (item 52E) can be flipped over and used. If it is damaged on both sides, order kit #09660.
Horsepower Specifications
| RPM | GPM | 1000 PSI | 1500 PSI | 2000 PSI | 3000 PSI |
|---|---|---|---|---|---|
| 400 | 27.8 | 19.2 | 28.8 | 38.3 | 57.5 |
| 500 | 34.7 | 23.9 | 35.9 | 47.9 | 71.8 |
| 600 | 41.6 | 28.7 | 43.0 | 57.4 | 86.1 |
| 700 | 48.6 | 33.5 | 50.3 | 67.0 | 100.6 |
| 800 | 55.5 | 38.3 | 57.4 | 76.6 | 114.8 |
