GP7555GB
A German-made reciprocating triplex plunger pump.
Features:
Spheroidal cast iron crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; solid ceramic plungers; nitrile seals with fabric reinforcing; stainless steel valves and nickel-plated Spheroidal cast iron manifold. Comes equipped with an integrated oil cooling system.
WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
| Specification | US | Metric |
|---|---|---|
| Flow | 84.5 GPM | 320 L/min |
| Maximum Discharge Pressure | 2000 PSI | 140 bar |
| Crankshaft Speed | 900 RPM | |
| Power | 118 HP | 88.0 KW |
| Max Temperature | 86 °F | 30 °C |

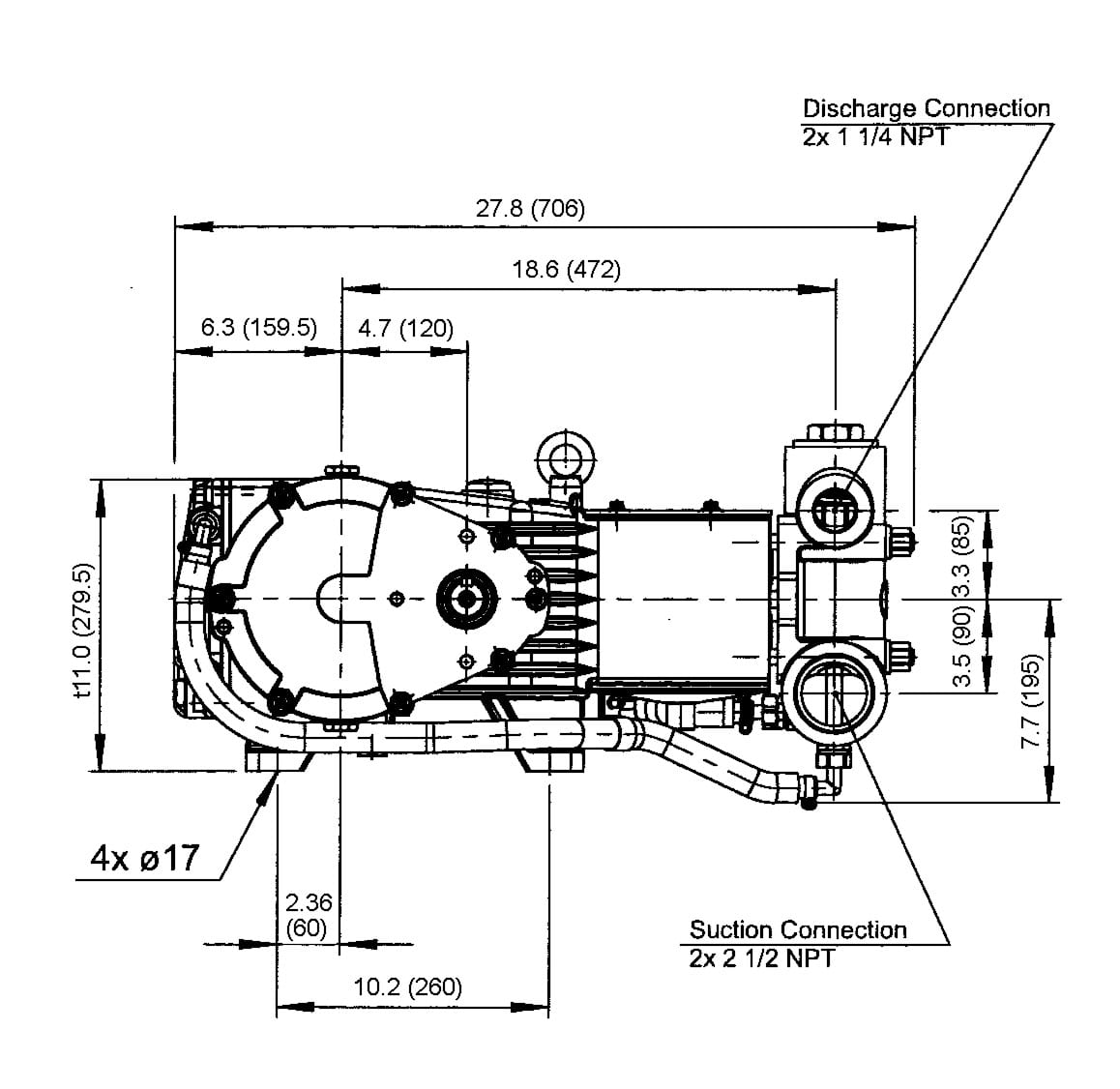

| Inlet Port Size | (2) 2-1/2" NPT | |
| Discharge Port Size | (2) 1-1/4" NPT | |
| Plunger Diameter | 2.17 in. | 55 mm |
| Stroke | 2.05 in. | 52 mm |
| Crankshaft Diameter | 1.38 in. | 35 mm |
| Crankshaft Rotation | Pinion Shaft Towards Back of Pump | |
| Crankshaft Mounting | Either Side | |
| Crankcase Oil Capacity US | 2.1 Gal | 8.0 L |
| Weight | 469 lbs. | 213 kg |
| Manifold Material | Nickel-Plated Spheroidal Cast Iron | |
| Crankcase Material | Spheroidal Cast Iron | |
| Plunger Material | Solid Ceramic Oxide | |
| Valve Material | Stainless Steel | |
| Seal Material | Nitrile with Fabric Reinforcing |

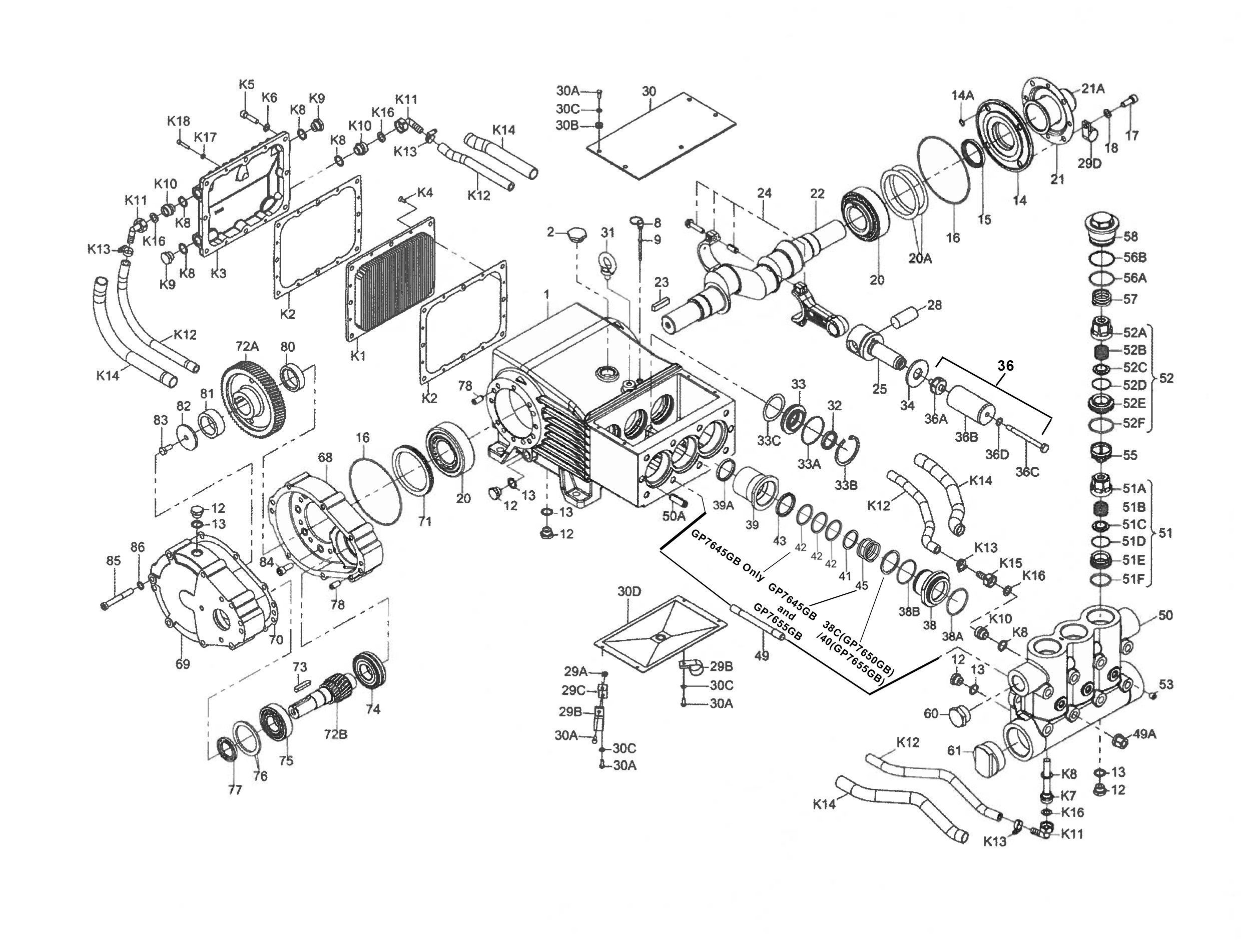

| ITEM# | PART# | DESCRIPTION | Qty. |
|---|---|---|---|
| Plunger Packing Kit – Part #09220 | |||
| 38A | 13156 | O-Ring | 3 |
| 38B | 07721 | O-Ring | 3 |
| 39A | 07723 | Grooved Ring | 3 |
| 41 | 13158 | Support Ring | 3 |
| 42 | 07711 | V-Sleeve | 6 |
| Oil Seal Kit – Part #09221 | |||
| 32 | 07624 | Radial Shaft Seal | 3 |
| 33A | 07627 | O-Ring | 3 |
| Inlet Valve Assembly Kit – Part #09559 | |||
| 51 | 05594 | Inlet Valve Assembly | 1 |
| 56A | 07658 | O-Ring | 1 |
| 56B | 07635 | Support Ring | 1 |
| Large Discharge Valve Kit – Part #09560 | |||
| 52 | 05600 | Discharge Valve Assembly | 1 |
| 55 | 05647 | Valve Spacer | 1 |
| 56A | 07658 | O-Ring | 1 |
| 56B | 07635 | Support Ring | 1 |
| Small Discharge Valve Kit* – Part #09561 | |||
| 51B | 05450 | Valve Spring | 1 |
| 51C | 05247 | Valve Plate | 1 |
| 51D | 05596 | O-Ring | 1 |
| 52F | 05599 | O-Ring | 1 |
| 56A | 07658 | O-Ring | 1 |
| 56B | 07635 | Support Ring | 1 |
*The discharge valve seat (item 52E) can be flipped over and used. If it is damaged on both sides order kit #09560.
Horsepower Specifications
| RPM | GPM | 500 PSI | 1000 PSI | 1500 PSI | 2000 PSI |
|---|---|---|---|---|---|
| 400 | 42.3 | 14.6 | 29.2 | 43.8 | 58.3 |
| 500 | 52.8 | 18.2 | 36.4 | 54.6 | 72.8 |
| 600 | 63.4 | 21.9 | 43.7 | 65.6 | 87.5 |
| 700 | 73.9 | 25.5 | 51.0 | 76.5 | 101.9 |
| 800 | 84.5 | 29.1 | 58.3 | 87.4 | 116.6 |
