GP7255A-SSP
A German-made reciprocating triplex plunger pump.
Features
Spheroidal cast iron crankcase with sight glass and vented dipstick; forged, through-hardened, ground and polished crankshaft; bronze connecting rods; hardened stainless steel plunger bases; stainless steel plungers; nitrile seals with fabric reinforcing; stainless steel valves and nickel-plated Spheroidal cast iron manifold.
WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
| Specification | US | Metric |
|---|---|---|
| Flow | 65.8 GPM | 250 L/min |
| Maximum Discharge Pressure | 1500 PSI | 100 bar |
| Crankshaft Speed | 700 RPM | |
| Power | 68.0 HP | 50.7 KW |
| Intermittent Flow | 80 GPM | 303 L/min |
| Intermittent Discharge Pressure | 2000 PSI | 140 bar |
| Intermittent Crankshaft Speed | 851 RPM | |
| Intermittent Power Consumption | 110.3 HP | 82.3 kW |
| Max Temperature | 140 °F | 60 °C |
| Inlet Port Size | (2) 2-1/2" NPT | |
| Discharge Port Size | (2) 1-1/4" NPT | |
| Plunger Diameter | 2.17 in. | 55 mm |
| Stroke | 2.0 in. | 52 mm |
| Maximum Inlet Pressure | 145 PSI | 10 bar |
| Crankshaft Diameter | 1.9 in. | 48 mm |
| Crankshaft Rotation | Top of Pulley Towards Manifold | |
| Key Width | 0.6 in. | 14 mm |
| Crankshaft Mounting | Either Side | |
| Crankcase Oil Capacity US | 1.6 gal | 6.0 L |
| Weight | 374 lbs. | 170 kg |
| Manifold Material | Nickel-Plated Cast Iron | |
| Crankcase Material | Spheroidal Cast Iron | |
| Plunger Material | Stainless Steel | |
| Valve Material | Stainless Steel | |
| Seal Material | Nitrile with Fabric Reinforcing |
| ITEM# | PART# | DESCRIPTION | Qty. |
|---|---|---|---|
| Plunger Packing Kit – Part #09220 | |||
| 38A | 13156 | O-Ring | 3 |
| 38B | 07721 | O-Ring | 3 |
| 39A | 07723 | Grooved Ring | 3 |
| 42 | 07711 | V-Sleeve | 6 |
| Oil Seal Kit – Part #09221 | |||
| 32 | 07624 | Radial Shaft Seal | 3 |
| 33A | 07627 | O-Ring | 3 |
| Inlet Valve Assembly Kit – Part #09659 | |||
| 51 | 05594 | Inlet Valve Assembly | 1 |
| 56A | 07658 | O-Ring | 1 |
| 56B | 07635 | Support Ring | 1 |
| Large Discharge Valve Kit – Part #09660 | |||
| 52 | 05600 | Discharge Valve Assembly | 1 |
| 55 | 05647 | Valve Spacer | 1 |
| 56A | 07658 | O-Ring | 1 |
| 56B | 07635 | Support Ring | 1 |
| Small Discharge Valve Kit – Part #09661 | |||
| 51B | 05450 | Valve Spring | 1 |
| 51C | 05247 | Valve Plate | 1 |
| 51D | 05596 | O-Ring | 1 |
| 52F | 05599 | O-Ring | 1 |
| 56A | 07658 | O-Ring | 1 |
| 56B | 07635 | Support Ring | 1 |
Horsepower Specifications
| RPM | GPM | 800 PSI | 1000 PSI | 1300 PSI | 1500 PSI | 2000 PSI* |
|---|---|---|---|---|---|---|
| 479 | 45.0 | 24.8 | 31.0 | 40.3 | 46.6 | 62.1* |
| 531 | 49.9 | 27.5 | 34.4 | 44.7 | 51.6 | 68.8* |
| 585 | 55.0 | 30.3 | 37.9 | 49.3 | 56.9 | 75.9* |
| 638 | 60.0 | 33.1 | 41.4 | 53.8 | 62.1 | 82.8* |
| 700 | 65.8 | 36.3 | 45.4 | 59.0 | 68.1 | 90.8* |
| 851* | 80.0* | 44.1* | 55.2* | 71.7* | 82.8* | 110.3* |
*Intermittent Duty Only

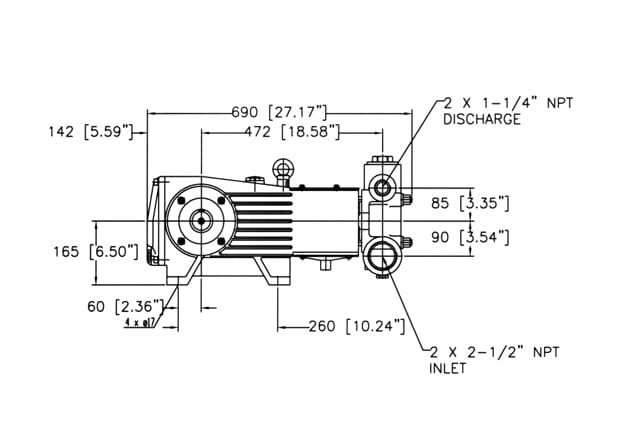

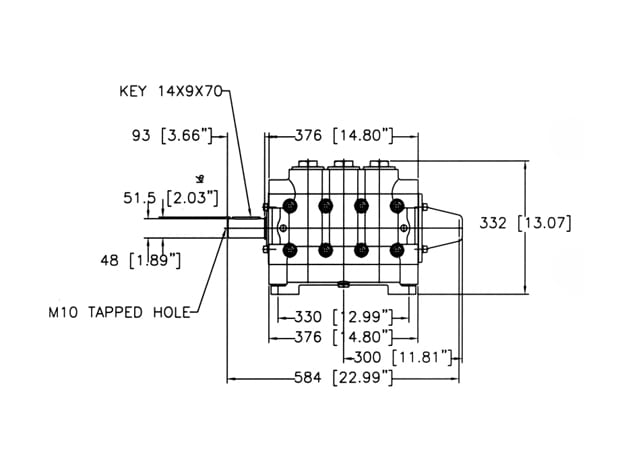

Images Open in new Window/Tab
