GP5142GBHS
WARNING: This product might contain a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
| Specification | US | Metric |
|---|---|---|
| Flow | 40.4 GPM | 153 L/min |
| Maximum Discharge Pressure | 1885 PSI | 130 bar |
| Crankshaft Speed | 800 RPM | |
| Power | 54.4 HP | 40.6 KW |
| Max Temperature | 140 °F | 60 °C |
| Inlet Port Size | (3) 1-1/2" NPT | |
| Discharge Port Size | (2) 1" NPT | |
| Plunger Diameter | 1.65 in. | 42 mm |
| Stroke | 1.81 in. | 46 mm |
| Maximum Inlet Pressure | 145 PSI | 10 bar |
| Crankshaft Bore | SAE-C Spline 14T 12/24 DP | |
| Crankshaft Rotation | Hydraulic Gear Towards Back of Pump | |
| Crankshaft Mounting | Either Side | |
| Crankcase Oil Capacity US | 1.3 gal | 5.0 L |
| Weight | 179 lbs. | 81 kg |
| Manifold Material | Nickel-Plated Spheroidal Cast Iron | |
| Crankcase Material | Spheroidal Cast Iron | |
| Plunger Material | Solid Ceramic Oxide | |
| Valve Material | Stainless Steel/Plastic Retainer | |
| Seal Material | Nitrile with Fabric Reinforcing |
The repair kits listed to the right are available for this pump. If you need further information about these repair kits, or have questions about other specific parts for your pump, please contact you local Giant distributor or contact Giant customer service.

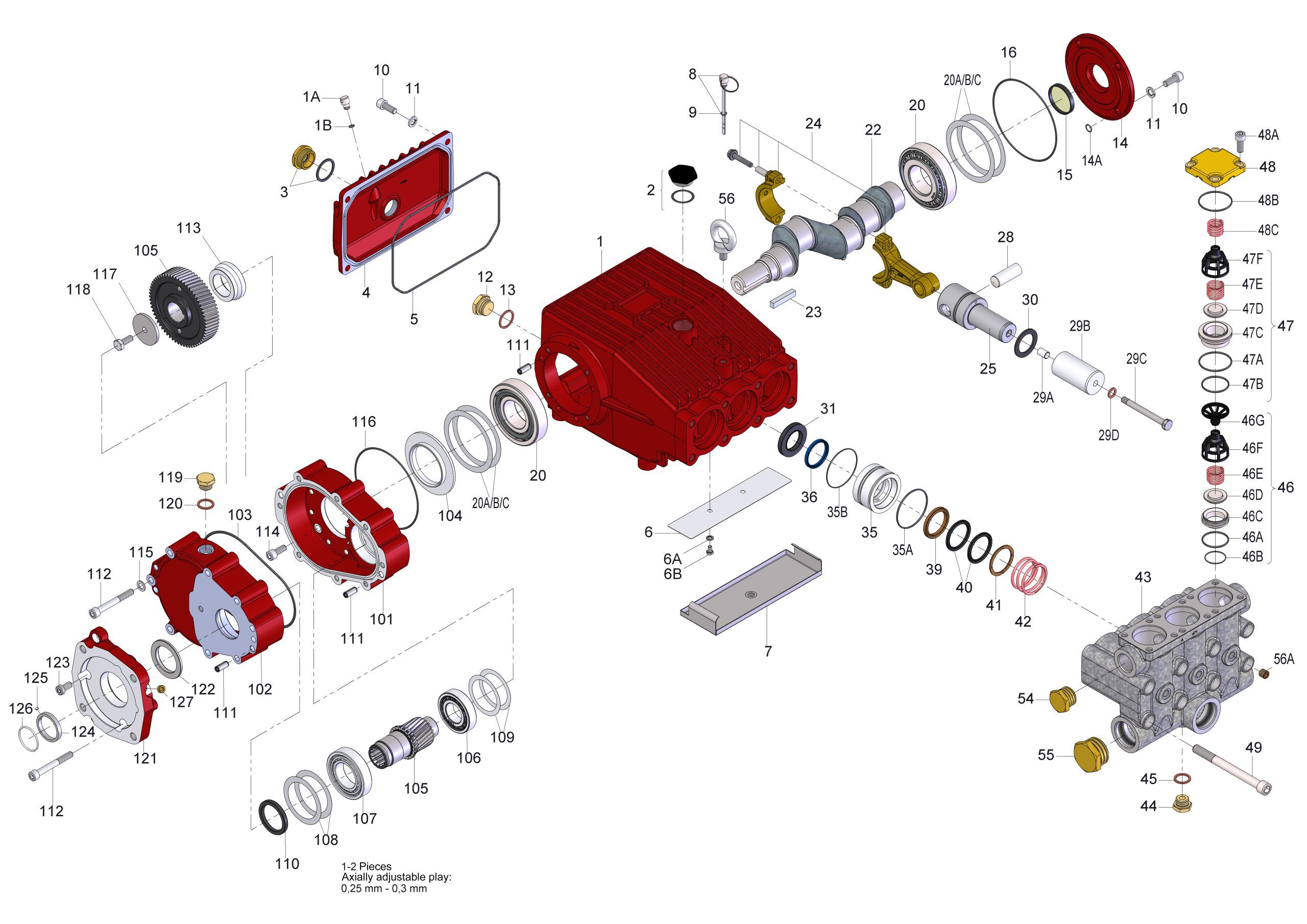

| ITEM# | PART# | DESCRIPTION | Qty. |
|---|---|---|---|
| Plunger Packing Kit – Part #09767 | |||
| 35A | 08183 | O-Ring | 3 |
| 35B | 13286 | O-Ring | 3 |
| 36 | 04323 | Grooved Ring | 3 |
| 40 | 07745 | V-Sleeve | 6 |
| Inlet Valve Assembly Kit – Part #09231 | |||
| 46A | 12055 | O-Ring | 1 |
| 46B | 08059 | O-Ring | 1 |
| 46C | 13304 | Valve Seat | 1 |
| 46D | 13306 | Valve Plate | 1 |
| 46E | 13307 | Valve Spring | 1 |
| Discharge Valve Assembly Kit – Part #09232 | |||
| 47A | 13289 | O-Ring | 1 |
| 47B | 07700 | O-Ring | 1 |
| 47C | 13314 | Valve Seat | 1 |
| 47D | 13306 | Valve Plate | 1 |
| 47E | 13307 | Valve Spring | 1 |
| Complete Valve Repair Kit – Part #09812 | |||
| 46A | 12055 | O-Ring | 3 |
| 46B | 08059 | O-Ring | 3 |
| 46C | 13304 | Inlet Valve Seat | 3 |
| 46D | 13306 | Valve Plate | 3 |
| 46E | 13307 | Valve Spring | 3 |
| 46F | 13308 | Spring Tension Cap | 3 |
| 46G | 13309 | Spacer Pipe | 3 |
| 47A | 13289 | O-Ring | 3 |
| 47B | 07700 | O-Ring | 3 |
| 47C | 13314 | Discharge Valve Seat | 3 |
| 47D | 13306 | Valve Plate | 3 |
| 47E | 13307 | Valve Spring | 3 |
| 47F | 13308 | Spring Tension Cap | 3 |
| 48B | 07740 | O-Ring | 3 |
| Oil Seal Kit – Part #09230 | |||
| 31 | 13284 | Oil Seal | 3 |
Horsepower Specifications
| RPM | GPM | 1000 PSI | 1250 PSI | 1500 PSI | 1750 PSI | 2500PSI |
|---|---|---|---|---|---|---|
| 500 | 20.2 | 13.9 | 17.4 | 20.9 | 24.4 | 26.3 |
| 1000 | 25.3 | 17.5 | 21.8 | 26.2 | 30.5 | 23.9 |
| 1750 | 30.3 | 20.9 | 26.1 | 31.4 | 36.6 | 39.4 |
| 3000 | 35.4 | 24.4 | 30.5 | 36.6 | 42.7 | 46.0 |
| 3200 | 37.9 | 26.1 | 32.7 | 39.2 | 45.7 | 49.3 |
| 3450 | 40.4 | 27.9 | 34.8 | 41.8 | 48.8 | 52.5 |
