Image | Model No. | Maximum Flow | Maximum Pressure | Speed | Power Consumption |
---|---|---|---|---|---|
GP5114 | 4.8 GPM 18.3 L/min | 17400 PSI 1200 bar | 1000 RPM | 58.4 HP 43.6 KW | |
GP5116 | 5.5 GPM 20.9 L/min | 15000 PSI 1000 bar | 850 RPM | 55.8 HP 41.6 KW | |

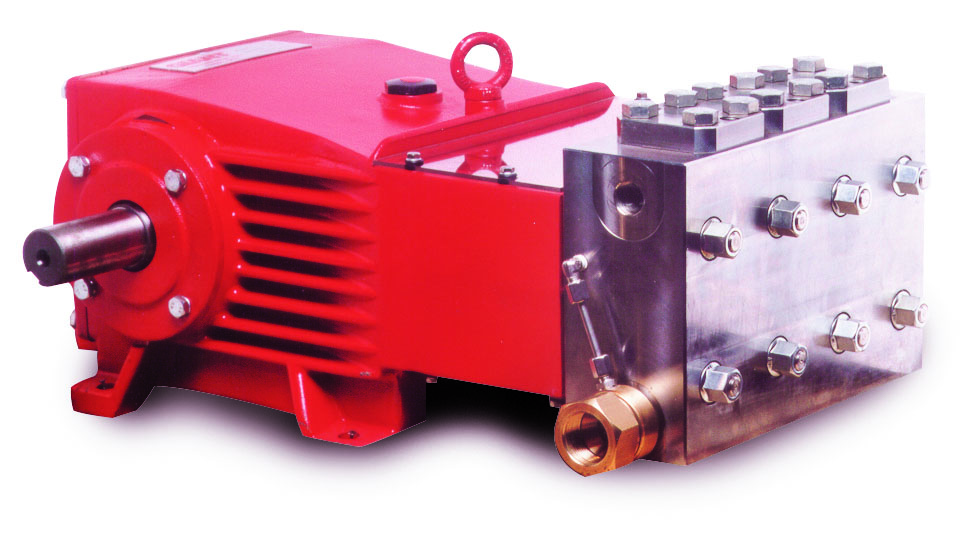

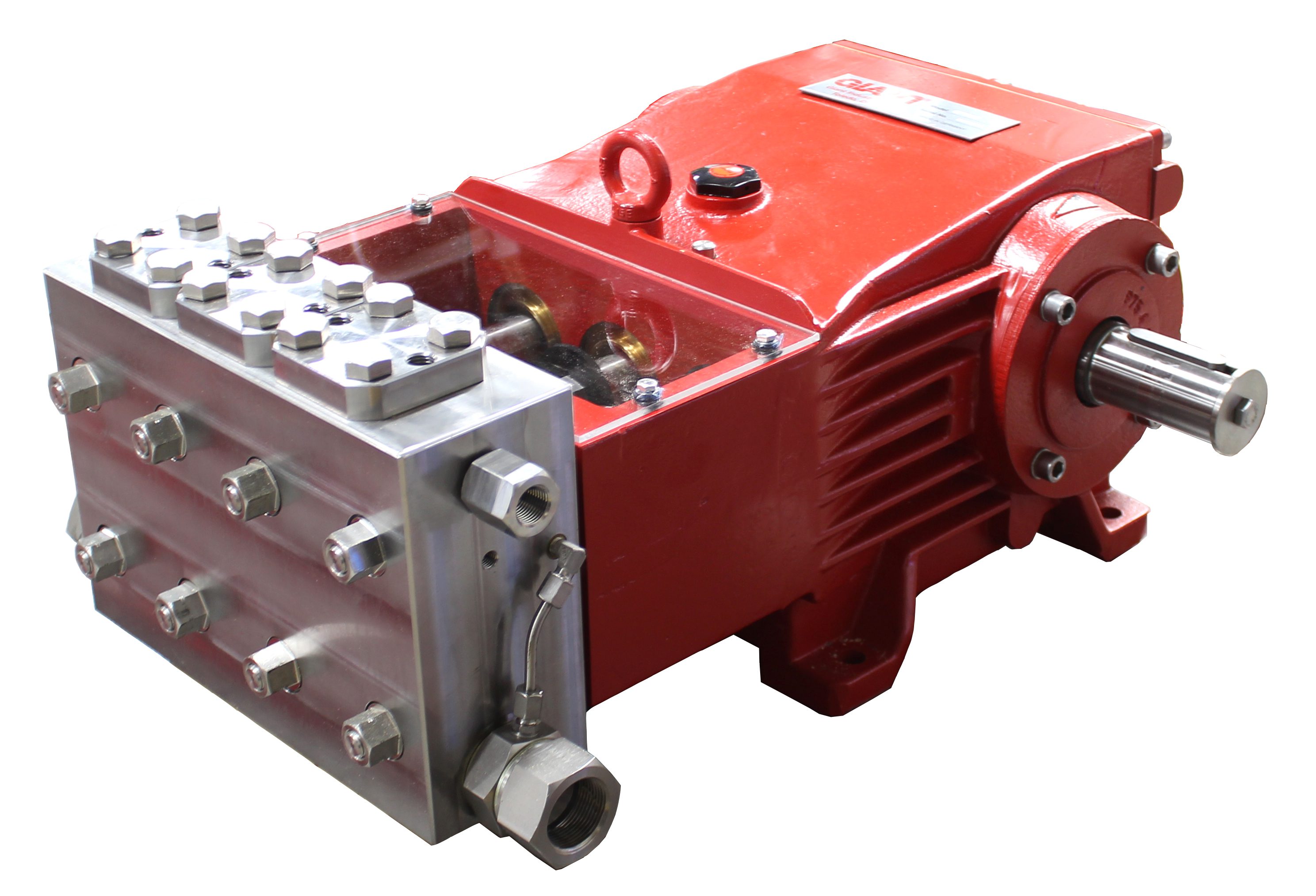

GP7122 | 9.9 GPM 37.4 L/min | 10300 PSI 710 bar | 750 RPM | 70.0 HP 52.2 KW | |
GP7522 | 9.9 GPM 37.5 L/min | 10150 PSI 700 bar | 750 RPM | 71.8 HP 53.5 KW | |
GP7522GB-180 | 9.9 GPM 37.5 L/min | 10150 PSI 700 bar | 750 RPM | 69.3 HP 51.7 KW | |
GP7522GB | 9.9 GPM 37.5 L/min | 10150 PSI 700 bar | 750 RPM | 69.3 HP 51.7 KW | |
GP7522GBHS-180 | 9.9 GPM 37.5 L/min | 10150 PSI 700 bar | 750 RPM | 69.3 HP 51.7 KW | |

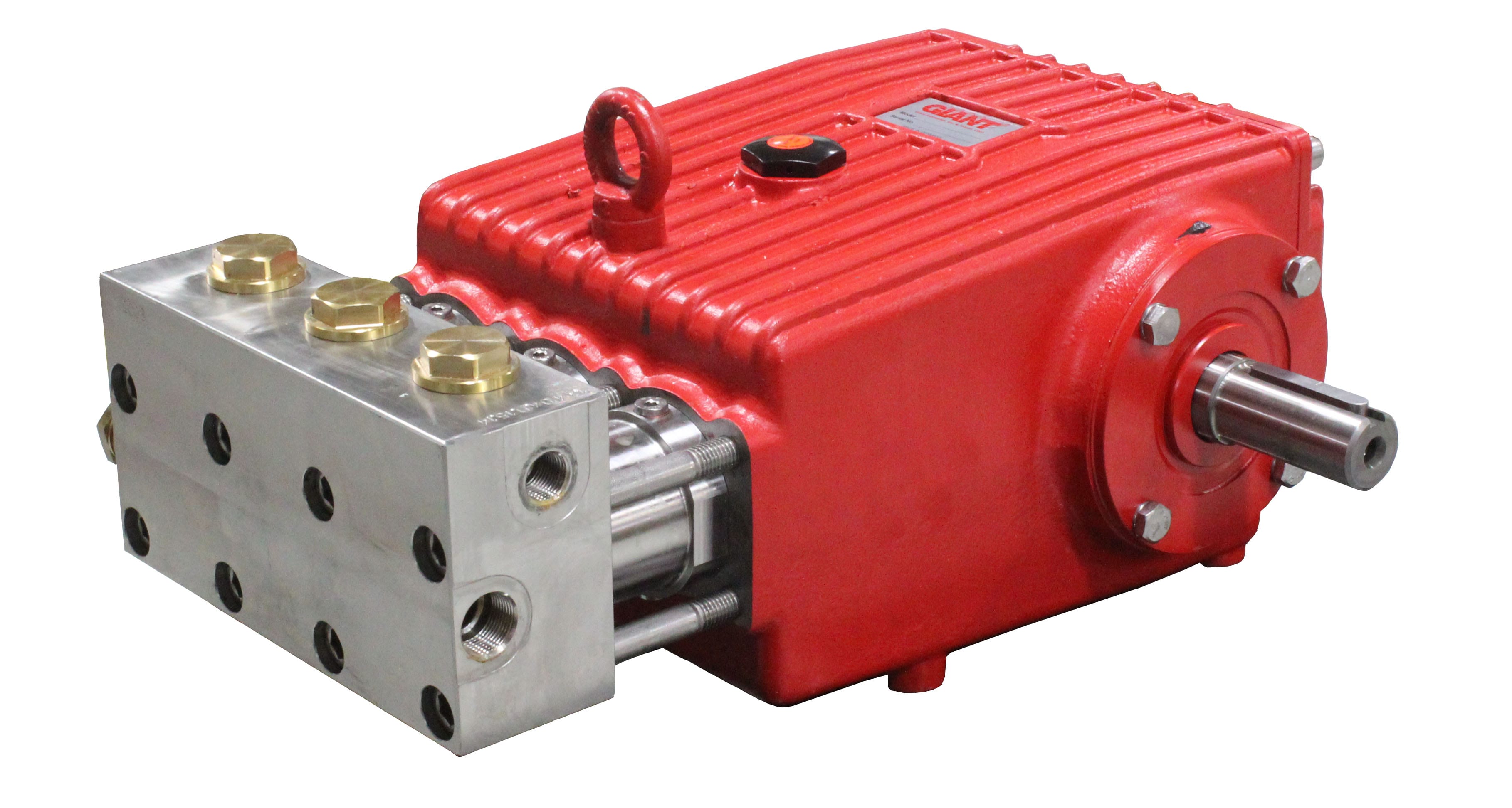

GP5120 | 10.5 GPM 40 L/min | 8700 PSI 600 bar | 1000 RPM | 63.3 HP 47.2 KW | |
GP5122 | 11.9 GPM 45 L/min | 7250 PSI 500 bar | 930 RPM | 59.0 HP 44.0 KW | |
GP7622 | 12.7 GPM 48 L/min | 15000 PSI 1000 bar | 800 RPM | 126.4 HP 94.3 KW | |
GP6124-4000 | 12.8 GPM 48.5 L/min | 6090 PSI 420 bar | 800 RPM | 51.2 HP 38.2 KW | |
GP7124A-4000 | 12.8 GPM 48.4 L/min | 7400 PSI 510 bar | 750 RPM | 65.3 HP 48.7 KW | |
GP5124 | 13.2 GPM 50 L/min | 5800 PSI 400 bar | 850 RPM | 53.8 HP 40.1 KW | |

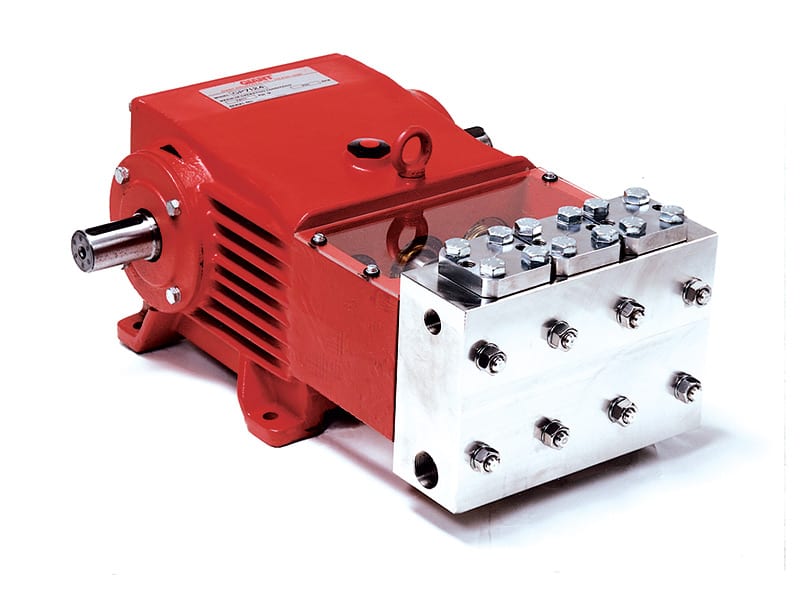

GP7128 | 17.9 GPM 67.7 L/min | 5800 PSI 400 bar | 750 RPM | 71.4 HP 53.2 KW | |
GP6128 | 18 GPM 68.1 L/min | 4350 PSI 300 bar | 800 RPM | 51.4 HP 38.3 KW | |

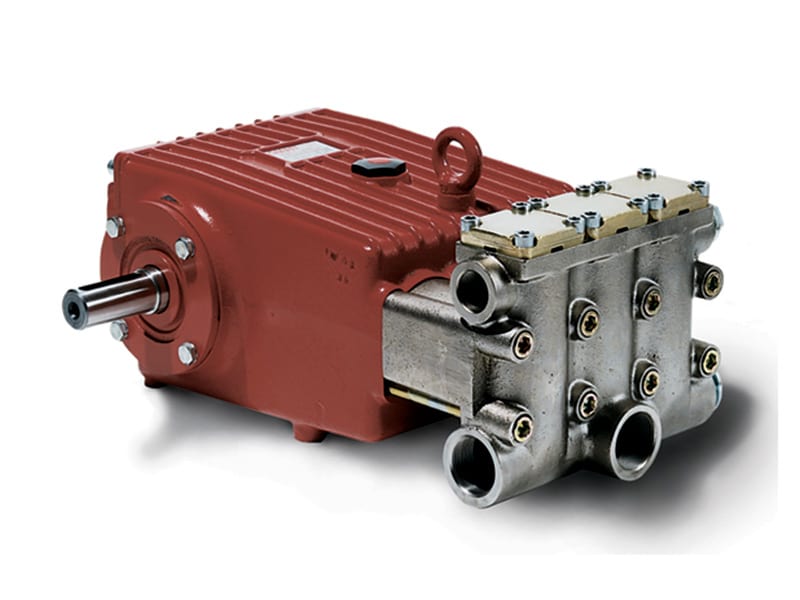

GP5128 | 20.6 GPM 78 L/min | 4060 PSI 280 bar | 1000 RPM | 56.0 HP 41.8 KW | |
GP5124-28 | 20.6 GPM 78 L/min | 4060 PSI 280 bar | 1400 RPM | 57.7 HP 43 KW | |
GP5128GB Series | 20.6 GPM 78 L/min | 4060 PSI 280 bar | 1000 RPM | 57.7 HP 43 KW | |
GP5128GBHS | 20.6 GPM 78 L/min | 4060 PSI 280 bar | 1000 RPM | 56.0 HP 41.8 KW | |
GP5128-BSP | 20.6 GPM 78.0 L/min | 4060 PSI 280 bar | 1000 RPM | 56.0 HP 41.8 KW | |
GP5128-SSP | 20.6 GPM 78.0 L/min | 4060 PSI 280 bar | 1000 RPM | 56.0 HP 41.8 KW | |
GP5128HS | 21.0 GPM 78.0 L/min | 4060 PSI 280 bar | 1000 RPM | 57.7 HP 43 KW | |
GP7132 | 23.4 GPM 88.5 L/min | 4350 PSI 300 bar | 750 RPM | 70 HP 52.2 KW | |

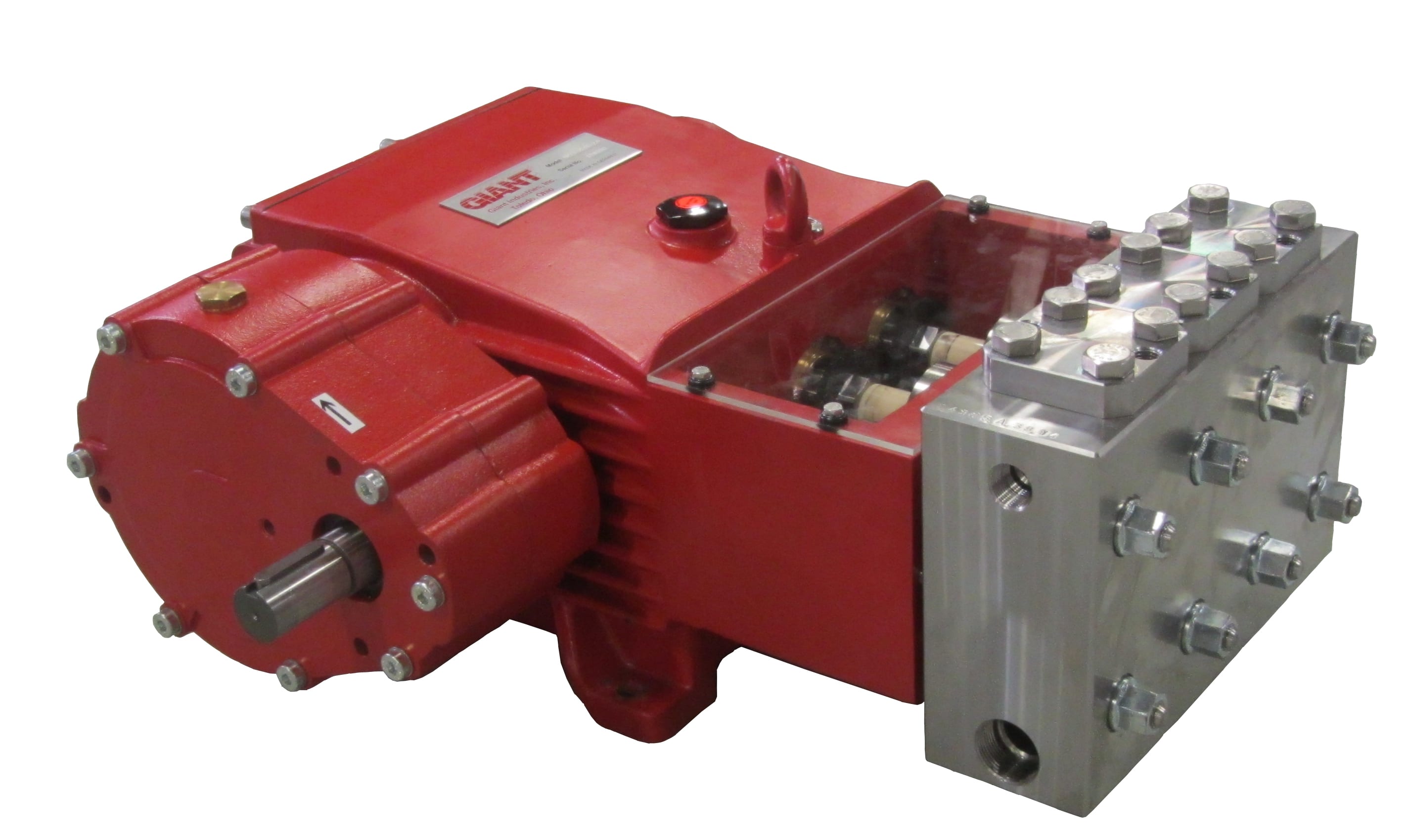

GP7532GB | 23.4 GPM 88.5 L/min | 4350 PSI 300 bar | 750 RPM | 72.7 HP 54.2 KW | |

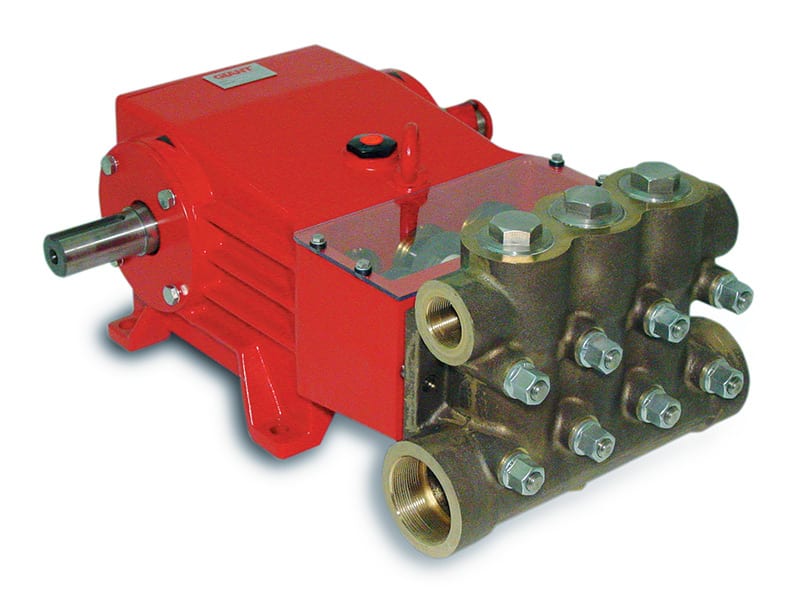

GP6132 | 23.5 GPM 88.9 L/min | 3045 PSI 210 bar | 800 RPM | 49.4 HP 36.8 KW | |
GP6132-4000 | 23.5 GPM 88.9 L/min | 3045 PSI 210 bar | 800 RPM | 49.4 HP 36.8 KW | |
GP5132GB-180 | 27.2 GPM 104.9 L/min | 3000 PSI 200 bar | 1000 RPM | 57.0 HP 42.8 KW | |
GP5132HS | 27.7 GPM 104.9 L/min | 2900 PSI 200 bar | 1000 RPM | ||
GP5132 | 27.7 GPM 104.9 L/min | 2900 PSI 200 bar | 1000 RPM | 57.4 HP 42.8 KW | |
GP5132-SSP | 27.7 GPM 104.9 L/min | 2900 PSI 200 bar | 1000 RPM | 57.0 HP 42.5 KW | |
GP5132GBHS | 27.7 GPM 104.9 L/min | 3000 PSI 200 bar | 1000 RPM | 57.4 HP 42.8 KW | |
GP7136-4000 | 28.3 GPM 107 L/min | 3625 PSI 250 bar | 700 RPM | 73.3 HP 54.7 KW | |
GP7136 | 28.3 GPM 107 L/min | 3625 PSI 250 bar | 700 RPM | 70.8 HP 52.8 KW | |
GP8035 | 29.1 GPM 110 L/min | 7250 PSI 500 bar | 580 RPM | 142 HP 106 KW | |

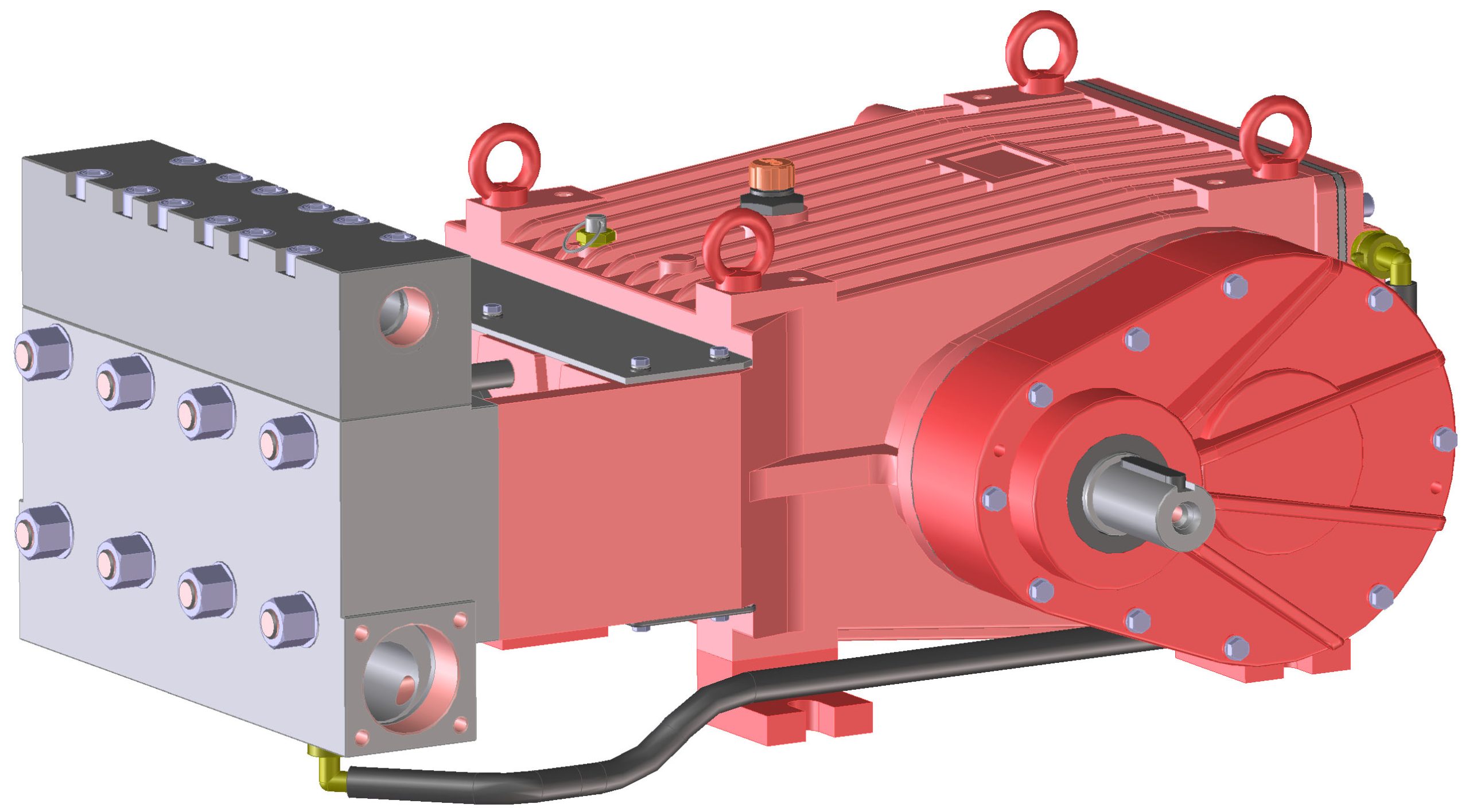

GP8135 | 29.1 GPM 110 L/min | 7250 PSI 500 bar | 580 RPM | 142 HP 106 KW | |
GP8135A | 29.1 GPM 110 L/min | 7250 PSI 500 bar | 580 RPM | 142 HP 106 KW | |
GP8035A | 29.1 GPM 110 L/min | 7250 PSI 500 bar | 580 RPM | 142 HP 106 KW | |
GP5136-HS | 33.8 GPM 127.8 L/min | 2320 PSI 160 bar | 910 RPM | 54.1 HP 40.3 KW | |
GP5136 | 33.8 GPM 127.8 L/min | 2320 PSI 160 bar | 910 RPM | 56.0 HP 41.8 KW | |
GP5136-5100 | 33.8 GPM 127.8 L/min | 2320 PSI 160 bar | 910 RPM | 56 HP 40.8 KW | |
GP5136GB | 33.8 GPM 127.8 L/min | 2320 PSI 160 bar | 910 RPM | 56.0 HP 41.8 KW | |
GP5136GBHS | 33.8 GPM 127.8 L/min | 2320 PSI 160 bar | 910 RPM | 56.0 HP 41.8 KW | |
GP6140-4000 | 36.7 GPM 139 L/min | 2175 PSI 150 bar | 800 RPM | 55.0 HP 41 KW | |
GP6140 | 36.7 GPM 139 L/min | 2175 PSI 150 bar | 800 RPM | 57.0 HP 42.5 KW | |
GP7142-4000 | 38.4 GPM 145.2 L/min | 2610 PSI 180 bar | 700 RPM | 69.0 HP 51.5 KW | |
GP7142-5100 | 38.4 GPM 145.2 L/min | 2600 PSI 180 bar | 700 RPM | 69.0 HP 51.5 KW | |

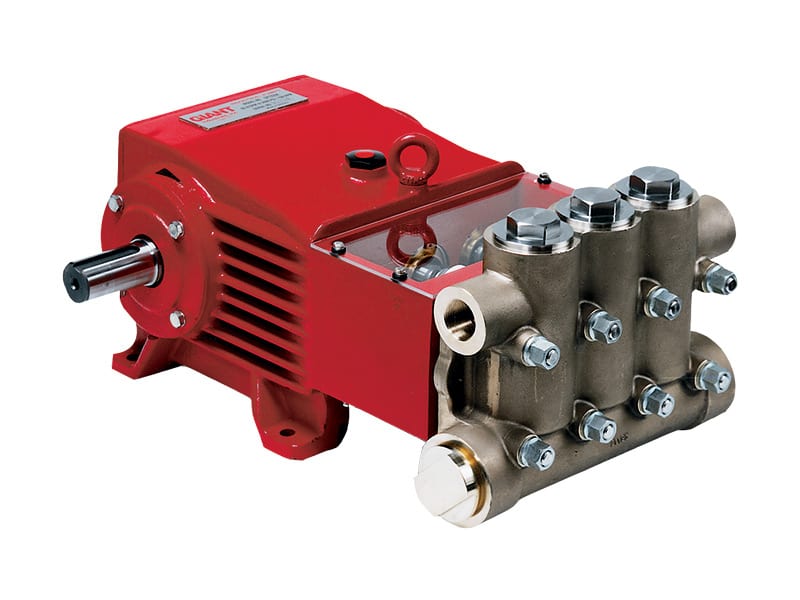

GP7142 | 38.4 GPM 145.2 L/min | 2610 PSI 180 bar | 700 RPM | 69.0 HP 51.5 KW | |
GP7142-5121 | 38.4 GPM 145.2 L/min | 2600 PSI 180 bar | 700 RPM | 69.0 HP 51.5 KW | |

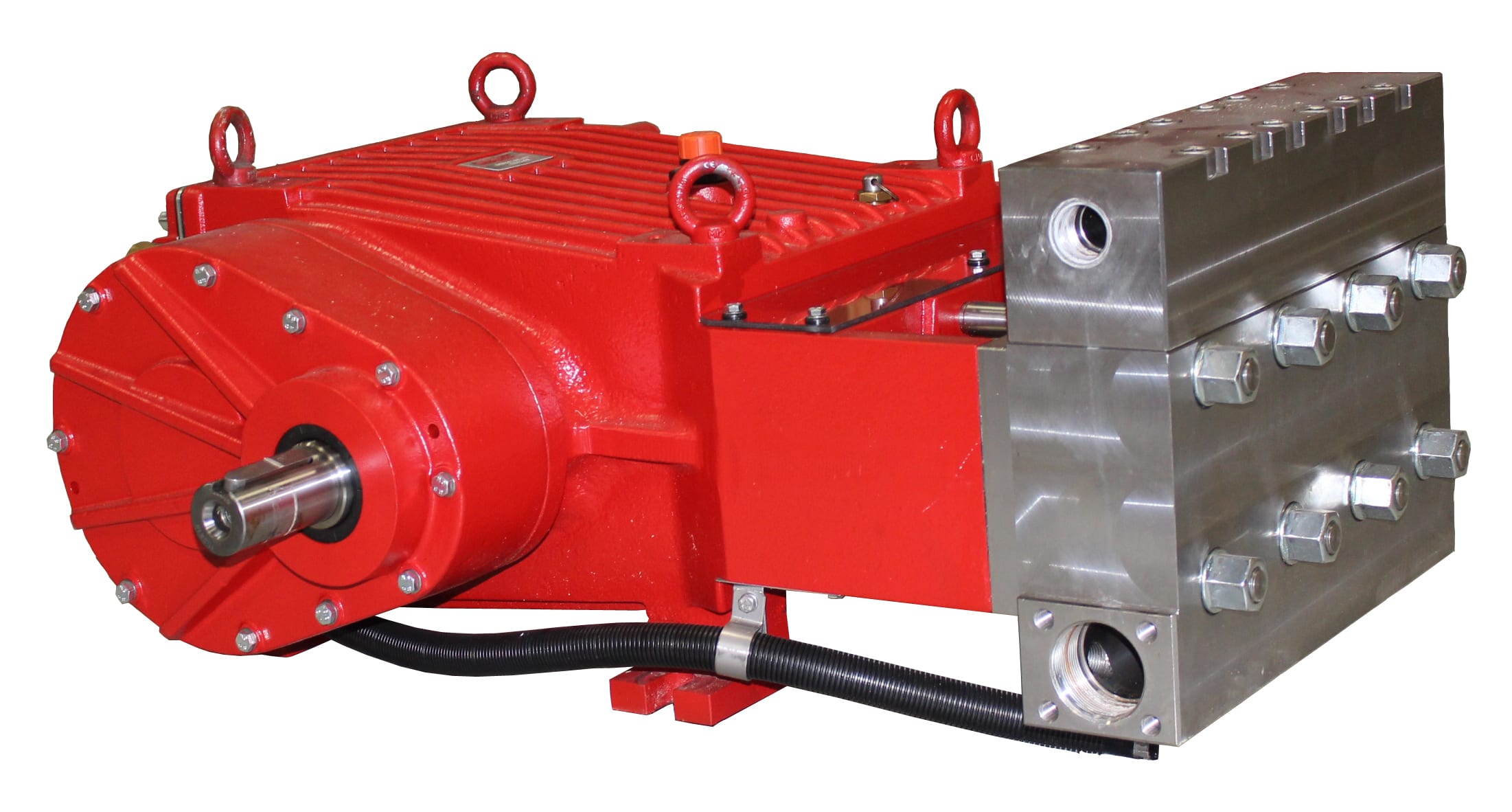

GP8140 | 39.6 GPM 150 L/min | 5510 PSI 380 bar | 580 RPM | 146 HP 109 KW | |
GP8140A | 39.6 GPM 150 L/min | 5510 PSI 380 bar | 580 RPM | 146 HP 109 KW | |
GP8040 | 39.6 GPM 150 L/min | 5500 PSI 380 bar | 580 RPM | 146 HP 109 KW | |
GP8040A | 39.6 GPM 150 L/min | 5500 PSI 380 bar | 580 RPM | 146 HP 109 KW | |
GP7636GB-2.0 | 40 GPM 151 L/min | 3800 PSI 262 bar | 890 RPM | ||
GP5142 | 40.4 GPM 153 L/min | 1885 PSI 130 bar | 800 RPM | 52.5 HP 39.2 KW | |
GP5142GBHS | 40.4 GPM 153 L/min | 1885 PSI 130 bar | 800 RPM | 54.4 HP 40.6 KW | |
GP7255HTC | 42.4 GPM 160.3 L/min | 1160 PSI 80 bar | 460 RPM | 34.9 HP 26.0 KW | |
GP7155-4000HTC | 42.4 GPM 160.3 L/min | 1160 PSI 80 bar | 460 RPM | 34.9 HP 26.0 KW | |
GP5145-HS | 43.5 GPM 164.6 L/min | 1450 PSI 100 bar | 750 RPM | 45.0 HP 33.6 KW | |

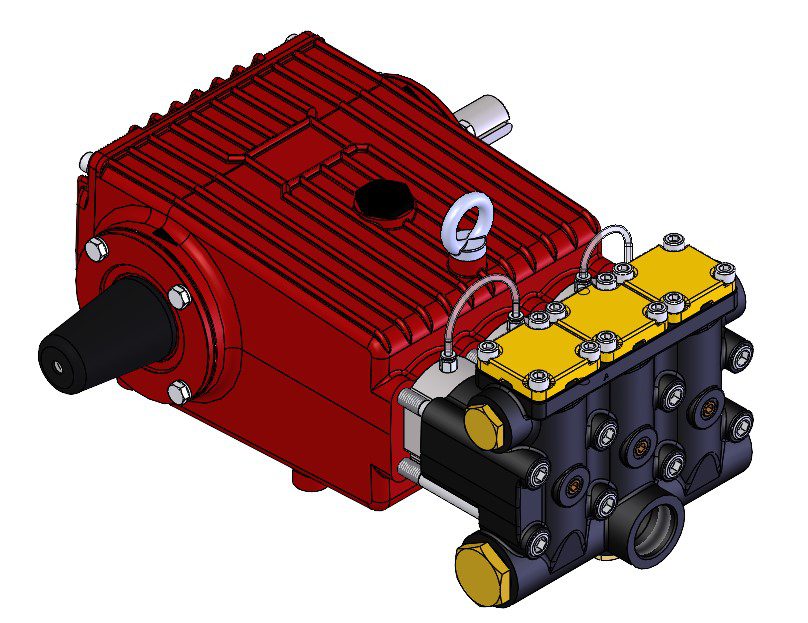

GP5145 | 43.5 GPM 164.6 L/min | 1450 PSI 100 bar | 750 RPM | 45.0 HP 33.6 KW | |
GP5145-5100 | 43.5 GPM 164.6 L/min | 1500 PSI 100 bar | 750 RPM | 45.0 HP 33.0 KW | |
GP5145GBHS | 43.5 GPM 164.6 L/min | 1450 PSI 100 bar | 750 RPM | 45.0 HP 33.6 KW | |
GP6145 | 46.5 GPM 175.9 L/min | 1740 PSI 120 bar | 800 RPM | 57.8 HP 43.1 KW | |
GP6145-4000 | 46.5 GPM 175.9 L/min | 1740 PSI 120 bar | 800 RPM | 55.8 HP 41.6 KW | |
GP6145-3100 | 46.5 GPM 175.9 L/min | 1740 PSI 120 bar | 800 RPM | 55.8 HP 41.6 KW | |
GP7145 | 47.5 GPM 180 L/min | 3000 PSI 200 bar | 750 RPM | 65.5 HP 48.8 KW | |

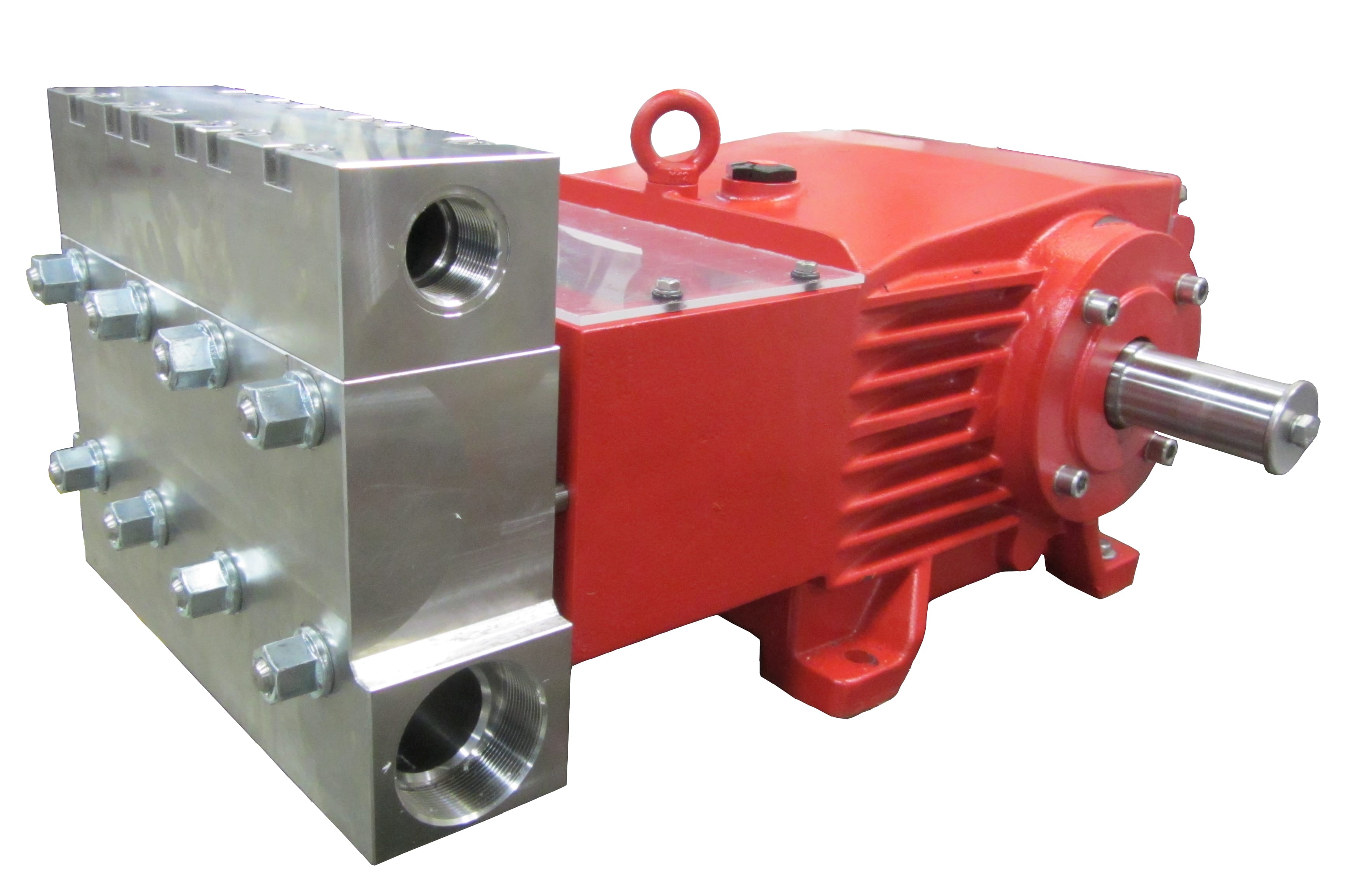

GP7145-5000 | 47.5 GPM 180 L/min | 3000 PSI 200 bar | 750 RPM | 98.3 HP 73.7 KW | |
GP7145-SSP | 47.5 GPM 180 L/min | 3000 PSI 200 bar | 750 RPM | 65.5 HP 48.8 KW | |
GP8045-3100 | 48.9 GPM 185 L/min | 4350 PSI 300 bar | 580 RPM | 146.7 HP 109.4 KW | |

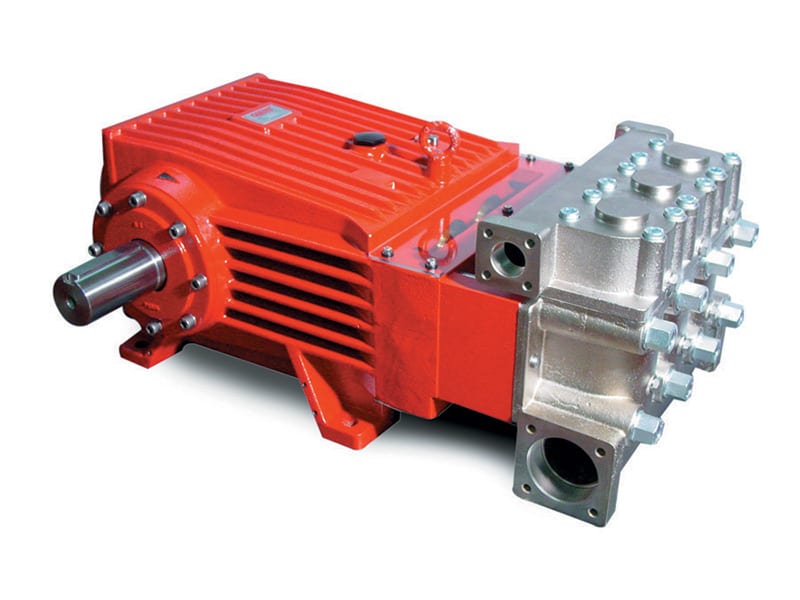

GP8045 | 48.9 GPM 185 L/min | 4350 PSI 300 bar | 580 RPM | 146.7 HP 109.4 KW | |
GP8145 | 49 GPM 185 L/min | 4350 PSI 300 bar | 580 RPM | 143 HP 107 KW | |
GP7150-5100 | 54.4 GPM 205.8 L/min | 1900 PSI 130 bar | 700 RPM | 70.6 HP 52.7 KW | |
GP7150-4000 | 54.5 GPM 205.8 L/min | 1900 PSI 130 bar | 700 RPM | 70.6 HP 52.7 KW | |
GP7150A | 54.5 GPM 206 L/min | 1900 PSI 130 bar | 700 RPM | 70.6 HP 52.7 KW | |
GP7645GB | 55.5 GPM 210 L/min | 3000 PSI 200 bar | 800 RPM | 111 HP 82.3 KW | |

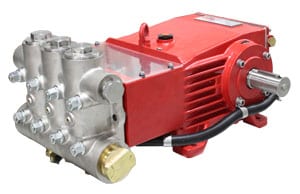

GP7645 | 55.5 GPM 210 L/min | 3000 PSI 200 bar | 800 RPM | 115 HP 82.5 KW | |
GP7645GBHS-180 | 55.5 GPM 210 L/min | 3000 PSI 207 bar | 800 RPM | 110 HP 82.5 KW | |
GP7645GBHS | 55.5 GPM 210 L/min | 3000 PSI 200 bar | 800 RPM | 110 HP 82.5 KW | |
GP7645GB-180 | 55.5 GPM 210 L/min | 2900 PSI 200 bar | 800 RPM | ||
GP7545GB | 55.5 GPM 210 L/min | 3000 PSI 200 bar | 900 RPM | 111 HP 82.5 KW | |
GP7545GBHS | 55.5 GPM 210 L/min | 3000 PSI 207 bar | 900 RPM | 111 HP 82.5 KW | |
GP8148 | 56 GPM 213 L/min | 3770 PSI 260 bar | 580 RPM | 142 HP 106 KW | |
GP7545GB-180 | 56.0 GPM 210.0 L/min | 2900 PSI 200 bar | 900 RPM | ||
GP8048-3100 | 56.3 GPM 213 L/min | 3770 PSI 260 bar | 580 RPM | 146.4 HP 109.2 KW | |
GP8048-5100 | 56.3 GPM 213 L/min | 3770 PSI 260 bar | 580 RPM | 146.4 HP 109.2 KW | |
GP8048 | 56.3 GPM 213 L/min | 3770 PSI 260 bar | 580 RPM | 147.7 HP 110.1 KW | |
GP7155-4000 | 65.8 GPM 249.1 L/min | 1500 PSI 100 bar | 700 RPM | 65.7 HP 49 KW | |
GP7155A | 65.8 GPM 249.1 L/min | 1500 PSI 100 bar | 700 RPM | 65.7 HP 49.0 KW | |

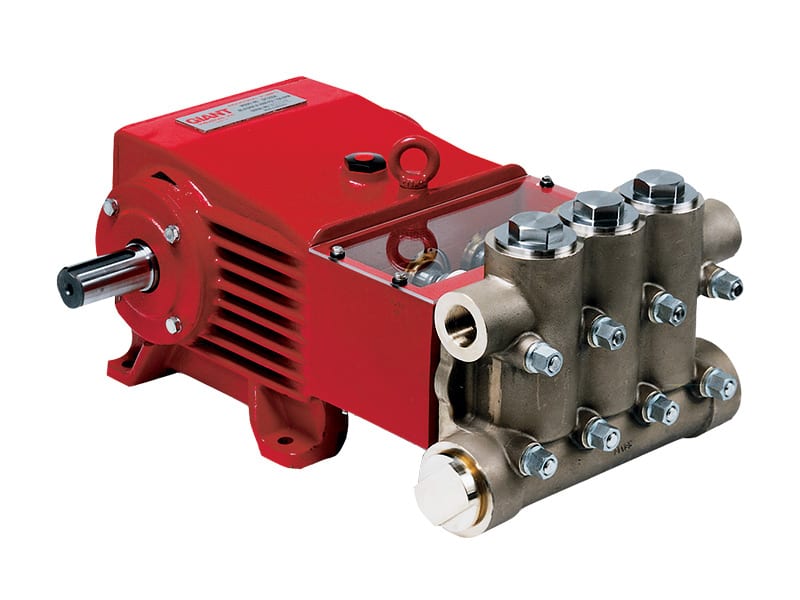

GP7255A | 65.8 GPM 250 L/min | 1500 PSI 100 bar | 700 RPM | 68.0 HP 50.7 KW | |
GP7255A-5000 | 65.8 GPM 250 L/min | 1500 PSI 100 bar | 700 RPM | 68.1 HP 50.8 KW | |
GP7255A-SSP | 65.8 GPM 250 L/min | 1500 PSI 100 bar | 700 RPM | 68.0 HP 50.7 KW | |
GP8040-5100 | 69.6 GPM 150 L/min | 5510 PSI 380 bar | 580 RPM | 150.5 HP 112.2 KW | |
GP7650 | 69.7 GPM 264 L/min | 2500 PSI 175 bar | 800 RPM | 122 HP 90 KW | |
GP7650GB | 70 GPM 264 L/min | 2540 PSI 175 bar | 800 RPM | 121 HP 90 KW | |
GP7650GBHS | 70 GPM 264 L/min | 2540 PSI 175 bar | 800 RPM | 121 HP 90.0 KW | |
GP7650GBHS-180 | 70 GPM 264 L/min | 2540 PSI 175 bar | 800 RPM | 121 HP 90 KW | |
GP7550GB | 70 GPM 265 L/min | 2540 PSI 175 bar | 900 RPM | 121 HP 90.0 KW | |
GP7550GBHS | 70 GPM 264 L/min | 2540 PSI 175 bar | 900 RPM | 121 HP 90.0 KW | |
GP8155GB-180 | 75.3 GPM 285 L/min | 3000 PSI 200 bar | 580 RPM | 150 HP 112 KW | |
GP8055 | 75.3 GPM 285 L/min | 3000 PSI 200 bar | 580 RPM | 145 HP 108 KW | |
GP8155 | 75.3 GPM 285 L/min | 3000 PSI 200 bar | 580 RPM | 145 HP 108 KW |
