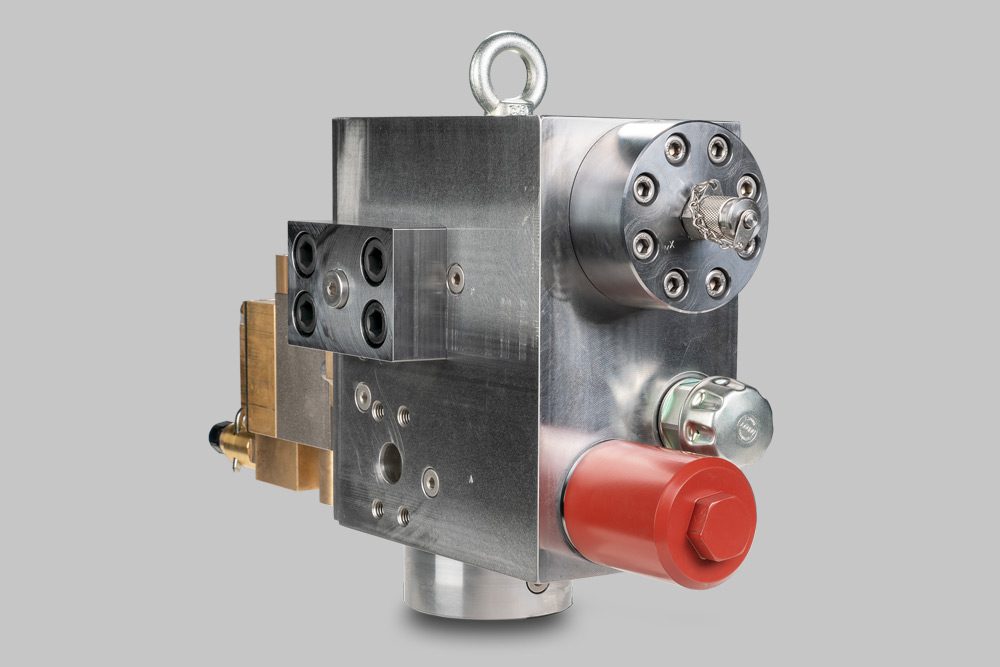

Unloader Valves
Smooth control of flow directions and pressure with the unloader valves of KAMAT
KAMAT unloader valves are the ideal solution when it comes to precise pressure control in fixed or varying volumes. A fast and smooth acting high-pressure valve that redirects the flow of the conveyed medium when the desired pressure on the discharge side is reached.
The ideal companion for pressure testing units of pipelines and vessels or other volumes
The smooth action makes it a trusty partner when pressure testing pipelines and vessels in all conditions. Further increased reliability is archived by the addition of a surge valve which is further protected by its own filter. This added filter is of great importance when solid particles are included in the conveyed medium, examples for that being the reinjection of drill slurry into the drilling hole. But our valves are not only reliable but also easy and versatile in their control. They can be controlled mechanically, pneumatically, electrically or hydraulically, all with the option for it to be remote controlled. Manufacturing using special materials is also possible to provide an ideal solution for the process industry.
Technical Specifications
- electric
- up to 700 bar
- up to 3600 l/min
- nominal diameter DN16/32/50/80
- pilot valve in 12V, 24V, 110V, 230V, explosion-proof, available
- special versions with pneumatic pilot control
Special Features
- control rod and valve seat at DN 32
- made of ceramic
- special materials available
- pilot valve also possible according to ATEX
- including suction valve against pressure surges
- very compact
- mounted directly on pump head
