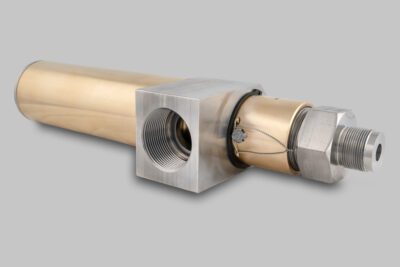

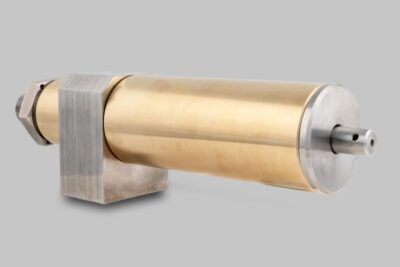

Safety Valves
Professional pressure-control with the high-pressure safety valves of KAMAT
Our valves are made in-house and are adjusted to the properties and pressures of your application. Our valves are full-lift safety valves and can be operated spring loaded or pilot-operated. All our valves are delivered adjusted to your desired working pressure, the maximum being 4,000 bar and flowrates of up to 4,700 l/min.
Two spring loaded variants of safety valves, even ATEX compliant
The simpler high-pressure valves have a rotatable by-pass connection to dispose of the escaping fluid. Pilot-operated valves need a block flange. Like all other KAMAT products, these are also ATEX compliant and can be manufactured using special materials to suit the medium you are pumping.
Technical Specifications
- full-lift valves
- spring loaded
- single or pilot-controlled version for more flow
- up to 4,000 bar
- up to 4,700 l/min
- DN 2,5 to DN 50
Special Features
- safety valve adjusts to the setting pressure again after opening
- quickly detects cavitation peaks in continuous operation
- up to 4,000 bar infinitely adjustable at the factory
- is delivered sealed and with a sticker with a test date
- independent adjustment and reparation possible
- also suitable for ATEX
