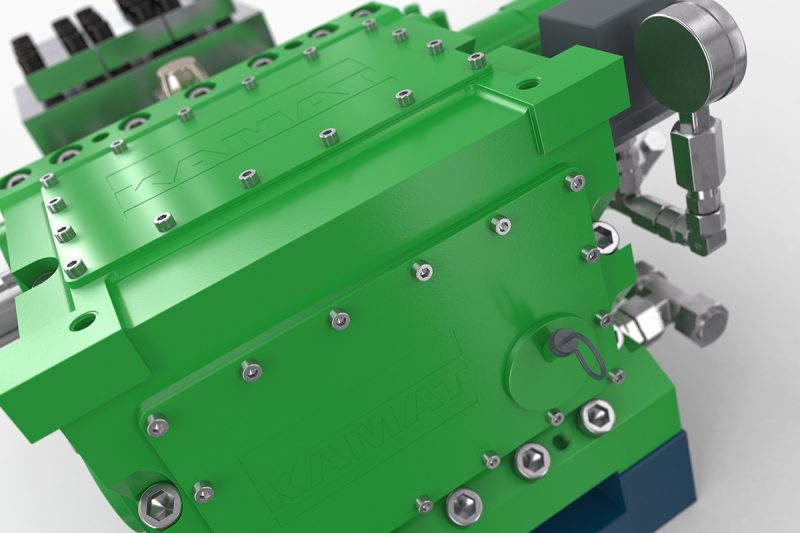

High-Pressure Triplex Plunger Pump K9000-3G
The high-performance 90 kW high-pressure pump for small industrial applications, high-pressure cleaning, load-cycling installations and pressure testing
This 90 kW displacement pump is suitable for all small-scale industrial uses. It can be fitted with a force-fed lubrication for 24/7 running or lubricated by immersion. The powerful high-pressure triplex plunger pump K9000-3G is the alternative to the smaller triple-plunger high-pressure pump K8000-3G. As with the K8000-3G the K9000-3G’s main areas of deployment are jetting, the process industry and provided industrial services like cleaning.
The use of different pump heads within the modular system of KAMAT allows for the variation in pumped media, flow rates and pressure.
A distinguishing property of the high-pressure triplex plunger pump K9000-3G is the pressure at which it can be operated, 3,140 bar at 13 l/m are possible. It is also part of the modular system and can be adapted to almost any property like conveyed medium viscosities of 2,000 mPas at 200 °C.
Technical Data
| K9000-3G* | Q max. | p max. psi @ hp | Head type | |||||
|---|---|---|---|---|---|---|---|---|
| US-GPM | 60 | 75 | 100 | 120 | A | M | M2 | |
| 9012 | 3.4 | 25672 | 31328 | 42786 | 45542 | 1 | ||
| 9014 | 4.8 | 18855 | 23061 | 31401 | 33431 | 1 | ||
| 9016 | 6.3 | 14431 | 17622 | 24076 | 25599 | 1 | ||
| 9018 | 7.9 | 11385 | 13924 | 19000 | 20233 | 2 | ||
| 9020 | 9.8 | 9210 | 11313 | 15374 | 16389 | 2 | ||
| 9022 | 11.9 | 7614 | 9355 | 12691 | 13561 | 2 | 1 | |
| 9024 | 14.3 | 6382 | 7832 | 10660 | 11385 | 2 | 1 | |
| 9026 | 16.6 | 5439 | 6672 | 9137 | 9718 | 2 | 1 | |
| 9028 | 19.3 | 4714 | 5729 | 7832 | 8340 | 2 | 1 | |
| 9030 | 22.2 | 4134 | 5004 | 6817 | 7252 | 2 | 1 | |
| 9032 | 25.4 | 3626 | 4424 | 6019 | 6382 | 2 | 1 | |
| 9036 | 32.0 | 2828 | 3481 | 4786 | 5076 | 1 | ||
| 9040 | 39.6 | 2321 | 2828 | 3844 | 4134 | 1 | ||
| 9045 | 50.2 | 1813 | 2248 | 3046 | 3263 | 1 | ||
| 9050 | 61.8 | 1450 | 1813 | 2466 | 2611 | 1 | ||
| 9055 | 74.8 | 1233 | 1523 | 2031 | 2176 | 1 | ||
| K9000-3G | Q max. | p max. bar @ kW | Head type | |||||
|---|---|---|---|---|---|---|---|---|
| l/min | 45 | 55 | 75 | 90 | A | M | M2 | |
| 9012 | 13 | 1770 | 2160 | 2950 | 3140 | 1 | ||
| 9014 | 18 | 1300 | 1590 | 2165 | 2305 | 1 | ||
| 9016 | 24 | 995 | 1215 | 1660 | 1765 | 1 | ||
| 9018 | 30 | 785 | 960 | 1310 | 1395 | 2 | ||
| 9020 | 37 | 635 | 780 | 1060 | 1130 | 2 | ||
| 9022 | 45 | 525 | 645 | 875 | 935 | 2 | 1 | |
| 9024 | 54 | 440 | 540 | 735 | 785 | 2 | 1 | |
| 9026 | 63 | 375 | 460 | 630 | 670 | 2 | 1 | |
| 9028 | 73 | 325 | 395 | 540 | 575 | 2 | 1 | |
| 9030 | 84 | 285 | 345 | 470 | 500 | 2 | 1 | |
| 9032 | 96 | 250 | 305 | 415 | 440 | 2 | 1 | |
| 9036 | 121 | 195 | 240 | 330 | 350 | 1 | ||
| 9040 | 150 | 160 | 195 | 265 | 285 | 1 | ||
| 9045 | 190 | 125 | 155 | 210 | 225 | 1 | ||
| 9050 | 234 | 100 | 125 | 170 | 180 | 1 | ||
| 9055 | 283 | 85 | 105 | 140 | 150 | 1 | ||
Technical Specifications
| Pressure | max. | 3100 | bar |
| Pressure (US) | max. | 44962 | psi |
| Flow | max. | 283 | l/min |
| Flow (US) | max. | 74.8 | us-gpm |
| Flow | max. | 62.3 | imp-gpm |
| Flow | max. | 106.8 | bbl/h |
| Power Input | max. | 90 | kW |
| Power Input (US) | max. | 122.4 | hp |
| Weight | 255 | kg | |
| Weight (US) | 562.2 | lbs |
| Pressure (ISO) | max. | 3100 | bar |
| Flow (ISO) | max. | 283 | l/min |
| Power Input (ISO) | max. | 90 | kW |
| Weight (ISO) | 255 | kg |
Special Features
- flow rate is based on 100% volumetric efficiency and 20°C ambient temperature
- min. inlet pressure depending on fluid medium
- speed range 10-100% depending on rod force
- gear with force-fed lubrication (> 75 kW with oil cooler)
- standard gear ratios i = 2.75 – 3.22 – 3.68
- also available to API 674
- special medium such as sea water, glycol, methanol, oils, etc. on request
- also vertical operation possible
